Quick Details

  • Drive Wheel: 4x2
  • Type: Pumper
  • Transmission Type: Manual
  • Condition: New
  • Horsepower: 251 - 350hp
  • Tank Capacity: 7001 - 10000L
  • Emission Standard: Euro 3
  • Fuel Type: Diesel
  • Max. Work Height: 60M
  • Size: 10180*2485*3680
  • Place of Origin: Hubei, China (Mainland)
  • Brand Name: clw howo
  • Model Number: ZZ1167M
  • Color: Red

Packaging & Delivery

Packaging Details naked with waxing
Delivery Time 30-40 days

Specifications

Howo 4x2 water and foam dual purpose fire fighting truck
6000Litres water
2000litres foam
300Horse power
brand new



Cheng Li series of fire fighting truck is modified from various types of chassis which produced by well-known company, maximum to keep the original truck function. They have advantages of technically advanced, reliable, responsive, easy operation and convenience. They are the ideal professional fire extinguishing equipments for professional fire department and fire brigade of enterprises.



Howo 4x2 water and  foam dual purpose fire fighting truck Parameters









Model

HOWO Foam-water Combined Fire Truck

8 tons

Chassis Model

ZZ1167M4617C second type

Weight Parameter

(kg)

Load weight

10000

Outline Dimensions

(mm)

8950×2500×3510

Curb weight

12050

Carriage Dimensions(mm)

/

MAX overall weight

22050

Wheelbase (mm)

4600

Engine



Model

WD615.92E

Type

/

Power/ Displacement(kw/ml)

196/9726

Product factory

Sino-Truck Co.,Ltd

Performance

parameter

Max speed (km/h)

90

Track Span

(mm)

Front axle

2022,2041

Max creeping slope capacity (%)

34

Rear axle

1830

Oil consumption/100K(L)

30

Reaching out of vehicle (mm)

Front overhang

1500

Slope stop for empty vehicle (%)

20

Rear overhang

2650

Min circle turning Diameter(m)

15.6

Driving angle (°)

Proximal angle

26

Smallest ground clearance (mm)

255

Off angle

13

Transmission

description

Machine type 6-speed transmission

Tire

10.00-20-16PR

Cab

Flat head all metal to up.

Five passenger allowed

Tank effective volume

8(m³)

Special

Function

Water tank volume(L)

6000

Foam tank volume(L)

2000



Fire Monitor

Model:PL48-64D

Foam flow(L/S): 50   Foam flow(L/S):48

Water throw range:≥ 60(m)/1.0MPa

Foam throw range:≥ 45(m)/2.0MPa



Fire Pump

(middle/low

pressure pump )

Model:CB20.10/30.60

Middle pump pressure (Mpa):1.0

Low pump pressure (Mpa):2.0

Middle pressure flow(L/S):30L/S/2.0MPa

Low pressure flow(L/S):60L/S/1.0MPa

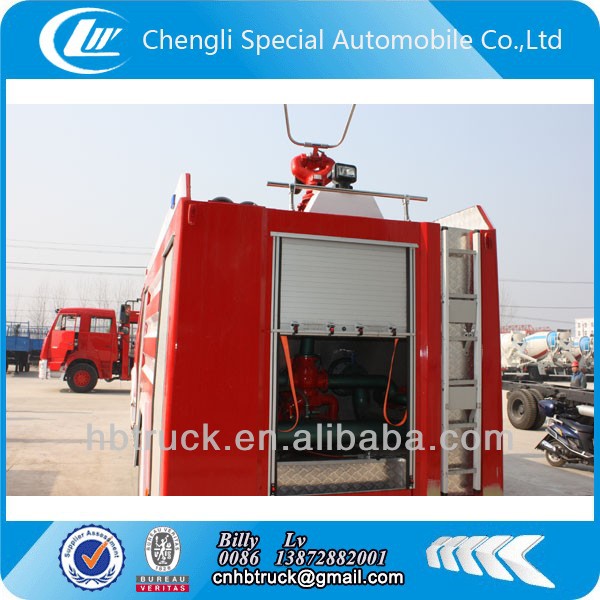

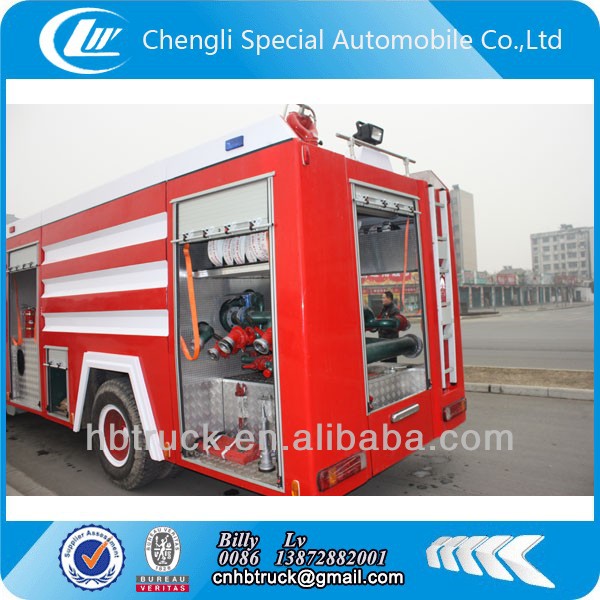

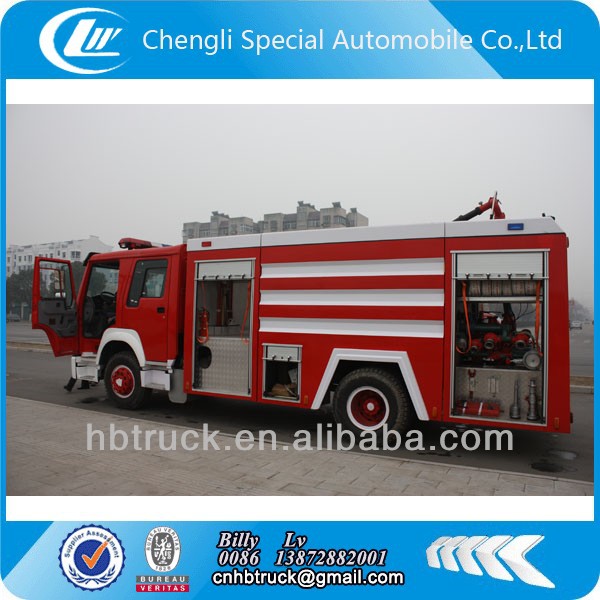

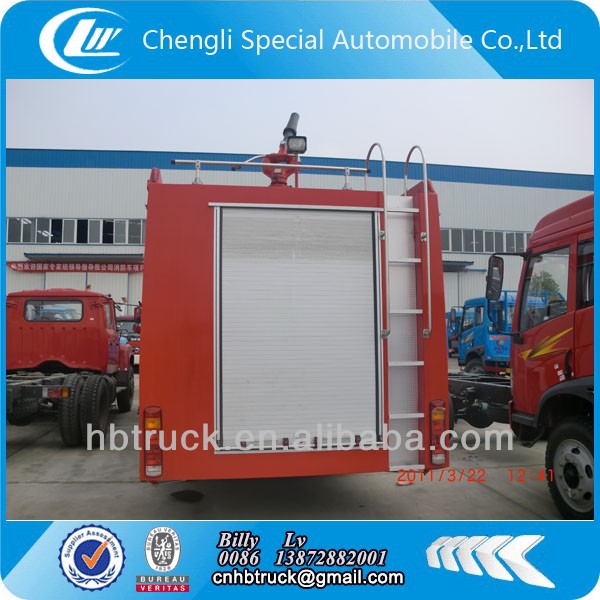

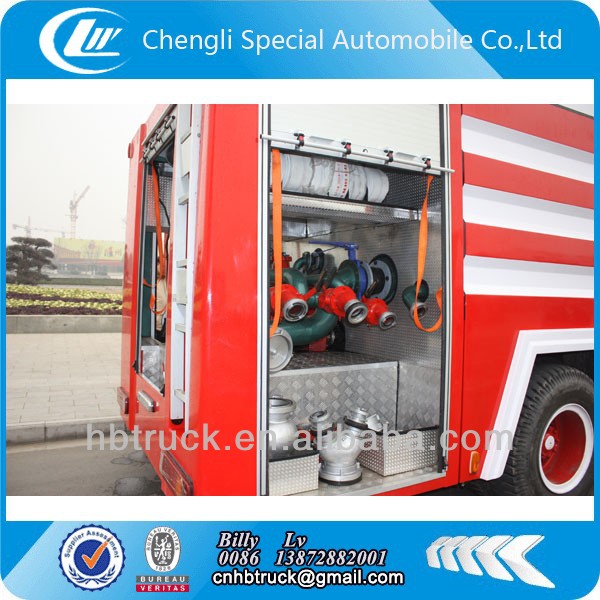

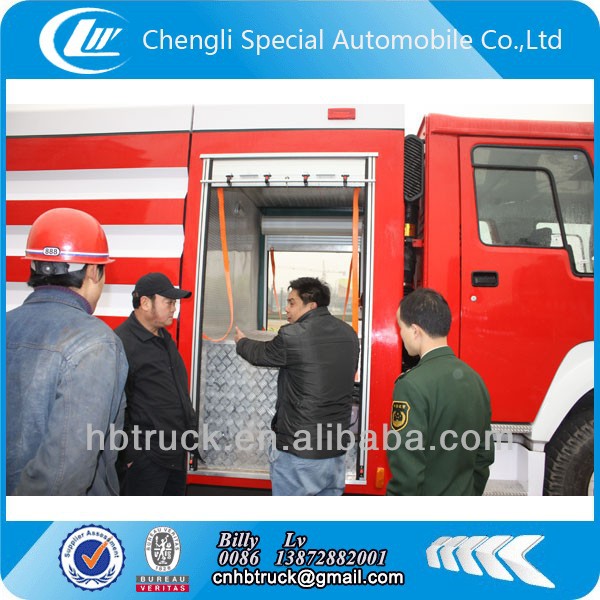

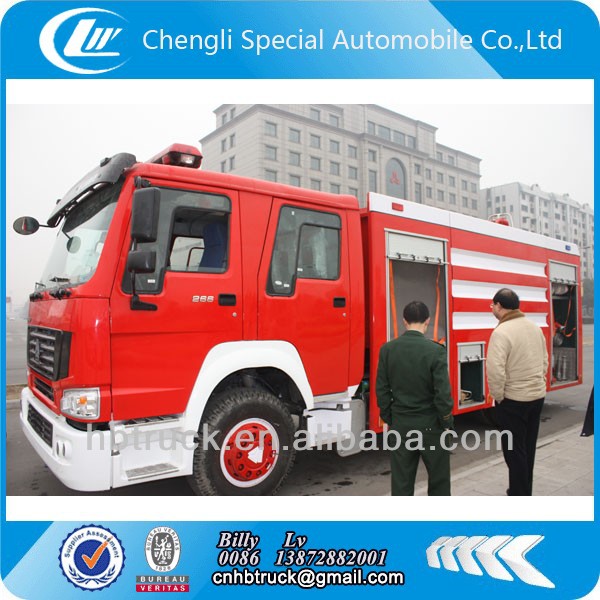

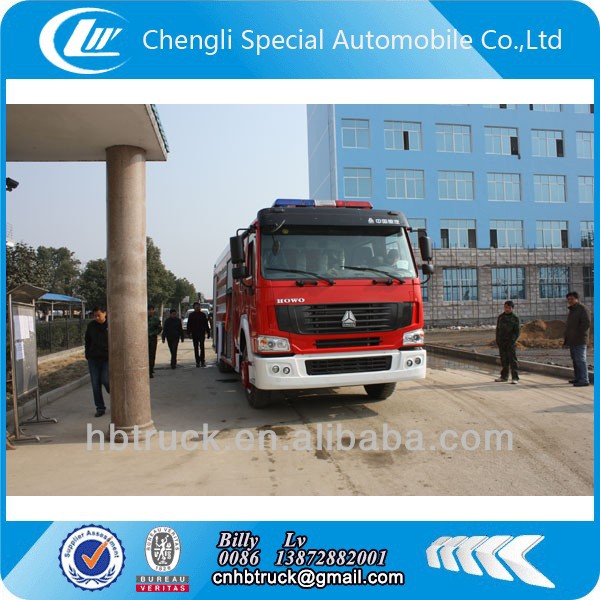

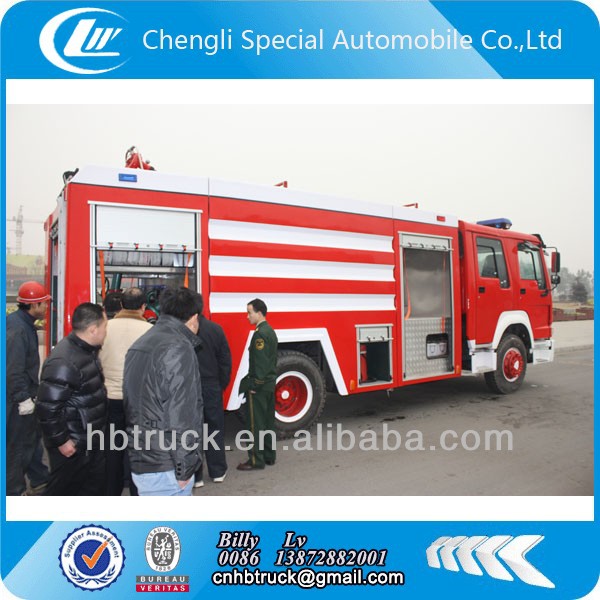

Howo 4x2 water and  foam dual purpose fire fighting truck pictures





We special in this feild of Howo 4x2 water and  foam dual purpose fire fighting truck for more than 10 years
