Quick Details

  • Transmission Type: Manual
  • Condition: New
  • Emission Standard: Euro 3
  • Fuel Type: Diesel
  • Tank Volume: 20000L
  • Dimension (L x W x H): 10100*2490*3850
  • Place of Origin: Hubei, China (Mainland)
  • Brand Name: ChengLiWei
  • Model Number: CLW5250GXWZ
  • Horsepower: 247
  • Gross Vehicle Weight: 11870

Packaging & Delivery

Packaging Details nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements
Delivery Time 10-20 business days

Howo 6*4 vaccum sewage truck



Product Description



A vacuum sewage truck is a tank truck with a heavy duty vacuum designed to pneumatically load solids, liquids, sludge or slurry through suction lines typically 2-4" in diameter with 3" being the norm. The typical pump used in the industry is the rotary vane vacuum pump. The truck can be configured to be a direct PTO/belt or a PTO/hydraulic drive system. There are two different ways to mount the pump either directly on the truck with PTO drive or on the trailer with a pony motor. Each application has different handling characteristics.



The trucks are often used by towns and municipalities for street cleanup, sewers, individual septic systems [1] and can also be used for cleanup of contaminated soil.The trucks are used in the cleaning of sanitary sewer lift stations and in the pump out of grease interceptors that are required at many restaurants. The trucks are mostly used in the petroleum industry, for cleaning of storage tanks and spills. They are also an important part of drilling oil and natural gas wells, as they are located at the drilling site. Vacuum trucks are used to remove drilling mud, drilling cuttings, cement, spills, and for removal of brine water from production tanks. They dispose of this in sump pits, treatment plants or if within safe levels may be spread out in a farmer's field.





Specification



Whole truck Information List

Truck model

CLW5250GXWZ

Total mass

25000

Rated mass

13000

Overall Dimension (L*W*H )

10100×2490×3850

Curb weight

11870

Tank Dimension (L*D)

6000×2200

Drive type

6*4

Cabin seat

2

A/D angle

16/15

F/R hang

1500/2650

Axles

3

Wheel base

4600+1350

Axles loading

7000/18000/18000

Max speed

90

Chassis Information List

Chassis model

ZZ1257N4647C

Tyre quantity

10

Tyre size

11.00-20 18PR

Leaf spring

10/12,4/12

Front track

2022

Fuel type

Diesel

Rear track

1830

Emission Standard

GB17691-2005 EuroⅢ,GB3847-2005

Engine model

WD615.95E

Displacement/power

9726/247

Horse Power

336

Manufacturer

Sinotruk

Tanker Information

Equipment

1. Equipped with special vacuum pump(rating rotate speed 1400r/m,min rotate speed 800r/m, max suction lift 6m, vacuum 500mmHg, clockwise)

2. Equipped with power take off, transmission shaft, high pressure sewage tank,  pipe network, sewage pipe for observing and cleanout equipment

3. Time for full suction  5min

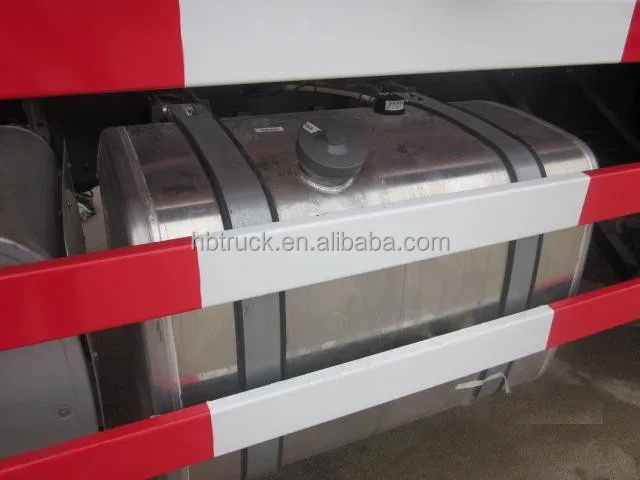

Fuel tanker capacity

380L

Gear box

Fast fuller 10forward speed ,2 reserve speed

Cabin

MP3 player , USB,driver seat has air suspension , with a sleeper





Pictures Show







Company Information

ChengLi Special Automobile Co.,Ltd, which is appointed by the Development and Reform Committee of China ,is a famous manufacturer producing all kinds of special trucks for Municipal &environmental construction, virescence, petrol & medicals, container. Semi-trailer. Labels registered include CLW . Our company has independable export potence, and has a mount of clients overseas. Our leading varieties include more than 100 types of trucks such as Water truck, Fecal suction truck, Garbage truck, Refuse compactor, Sewage suction truck, Fuel tank, High-altitude operation truck, Truck with crane, Dump truck, Instructional truck, Van truck, Semi-trailer, Fire engine, Spares, Refrigerator truck, Water wagon, Tractor, High-altitude water truck, Bulk cement truck, Chemical liquid truck, Concrete mixer truck, ect.





Certifications





Packaging & Shipping

Delivery date: 20-25 business days

Payment terms: pay 30% of contract value as prepayment after sign contract and pay the rest after the goods finished.

Packing: nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements



Remarks

The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.

Should you have any other questions or need any other information, pls feel free to contact me. It would be my great pleasure to be on your service. Pls check my contact information as following











Welcome to visit our factory !
