Quick Details

  • Condition: New
  • Transmission Type: Manual
  • Emission Standard: Euro 3
  • Fuel Type: Diesel
  • Dimensions (L x W x H) (mm): 9000*2450*3600
  • Gross Vehicle Weight: 8305
  • Place of Origin: Hubei, China (Mainland)
  • Brand Name: ChengLiWei
  • Model Number: CLW5161ZSLD3

Packaging & Delivery

Packaging Details Nude by roro ship or bulk ship.
Delivery Time 20-25 days.

Dongfeng 20m3 bulk feed truck





1. Brief introduction



  • CLW brand bulk feed trucks are dedicated transport vehicles,which are on the base of using series chassis ,selecting high quality and High strength steel plate ,welding forming whole tanker,  Equipped with electric winch feeding auger system and Electro - hydraulic operating system.
  • Main feature :Tankers are made of high quality steel plate auto- matic welding machine for molding, The tankers can be divided into two to four compartments for different kinds of feed. With simple structure, it is easy to control and maintenance. Adopt screw auger to discharge, use three phase power or power of generator droved by truck, so can satisfy customers with or without three phase power at work site.
  • CLW brand bulk feed trucks are mainly used for loading and unloading , transporting pelletized feed in various feed mills, large - scale farms etc. Also could used to transport some Non-corrosive granular material . My company’s bulk feed truck could transport different kinds of feed at same time by setting Compartment . Have the definite advantage of connivent and very wide range of applications. Which is the indispensable means of transportation for farms and feed mills .

2. Technical parameters

Vechcile information list
Truck brandCLW
Truck modelCLW5161ZSLD3 bulk feed truck
Gross weight16000Tanker volum15.0
Rated weight7500Overall dimension9000×2450×3600
Curb weight8305Body dimension××

Cabin seat3
A/D angle20/12F/R overhang1430/2570
Axles2Wheel base5000,4700
Axles loading6000/10000Max speed85
  tanker:15CBM 6010×2300×1900(length ×width×height )(mm).
Chassis information list
Chassis modelDFL1160BX
Brand NamedongfengManufacturerDFAC
Overall dimension8790,8290*2760,2840Tyre quantity6
A/D angle20/13Tyre size9.00-20,9.00R20,10.00-20,10.00R20,275/80R22.5
Leaf spring quantity7/9+6,8/10+8Front track1880
Fuel typeDieselRear track1800,1860
StandardEuro III
Engine modelManufacturerDisplacementPower
ISDe180 30
ISDe185 30
ISDe210 30
B190 33
EQH180-30
EQH180-33
YC6J200-33
 4500
6700
6700
5900
4752
4752
6494
132
136
155
140
132
132
147

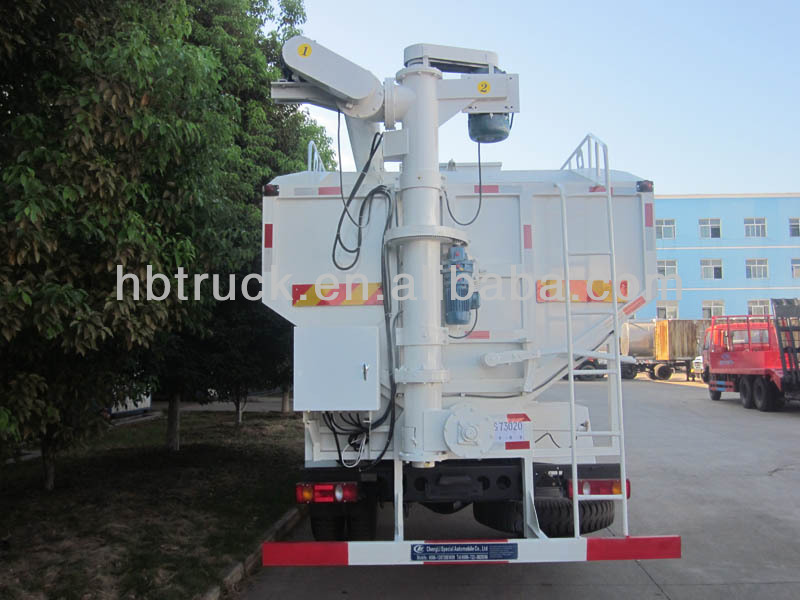

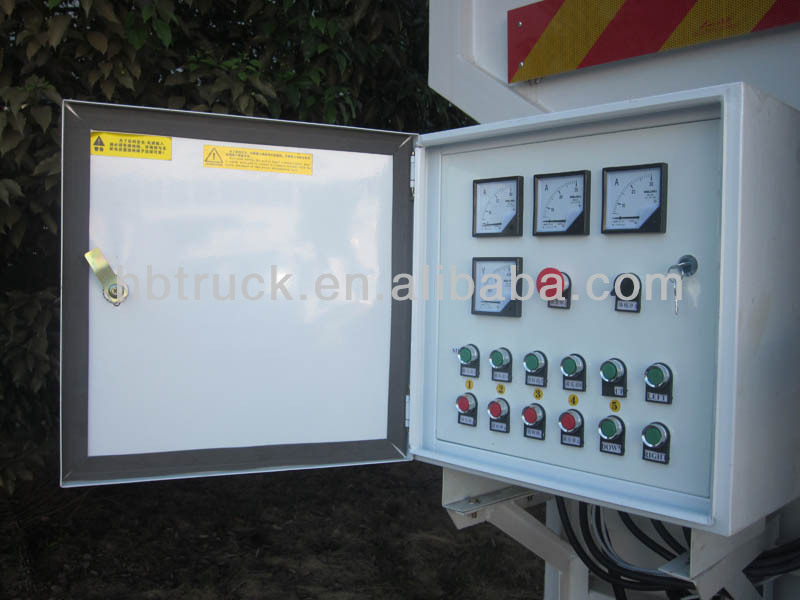

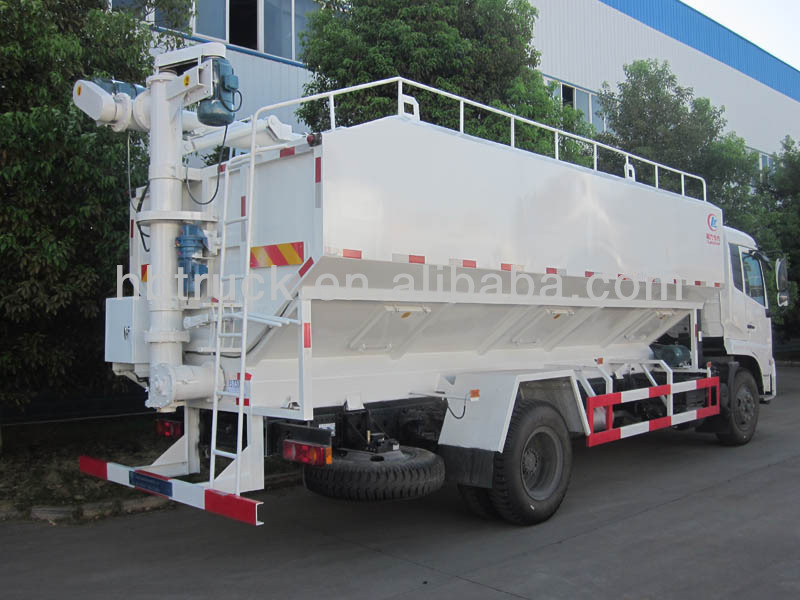

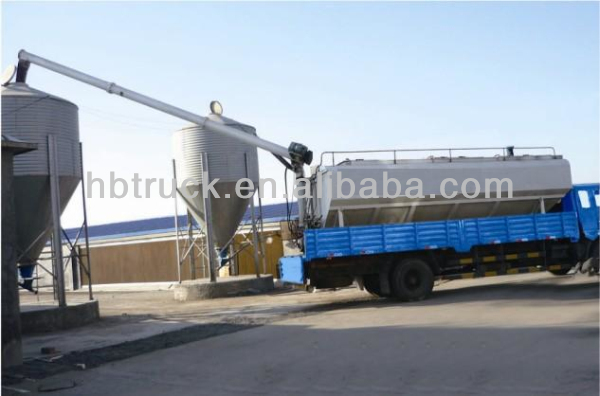

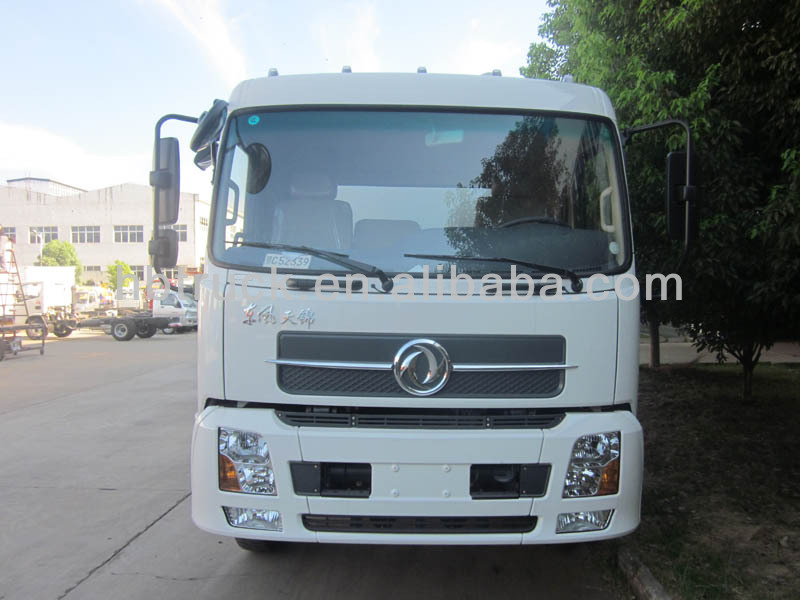

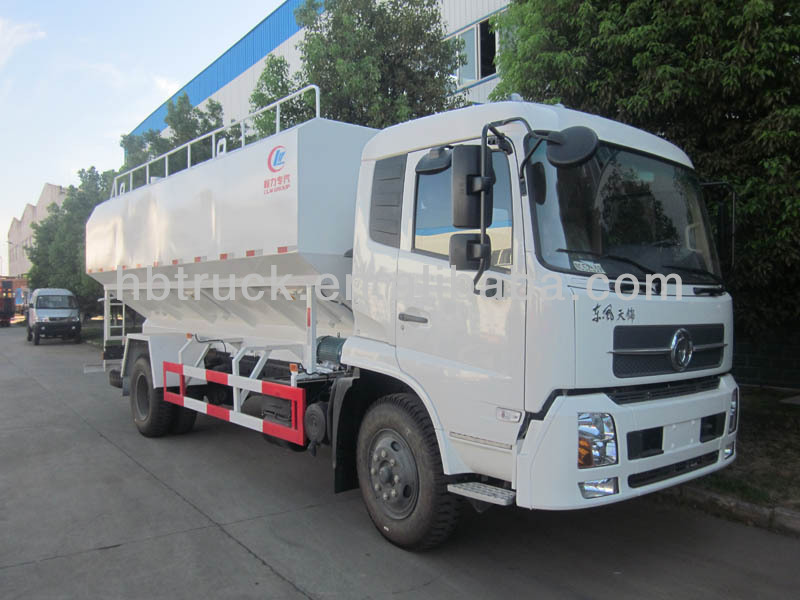

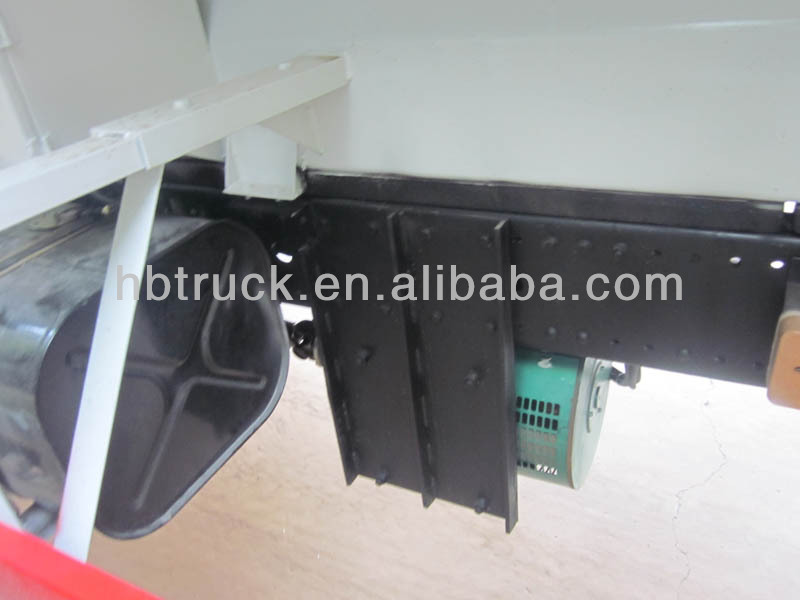

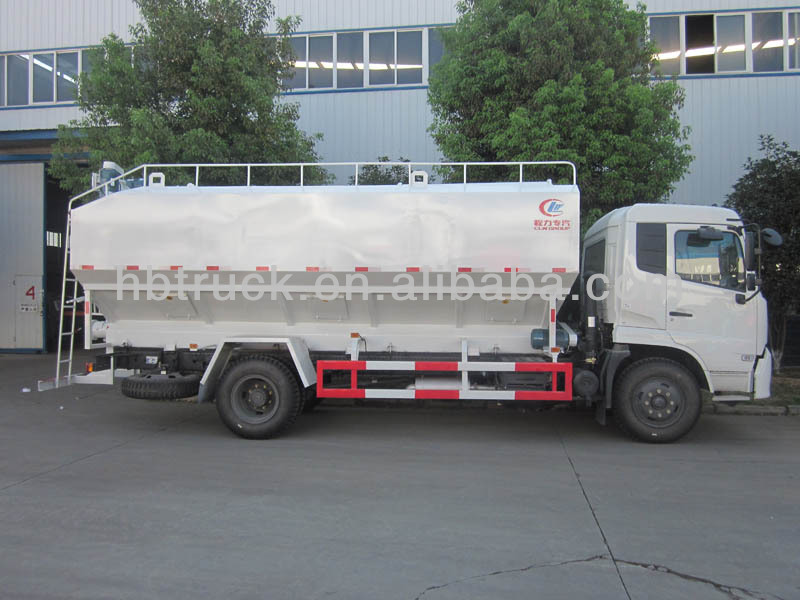

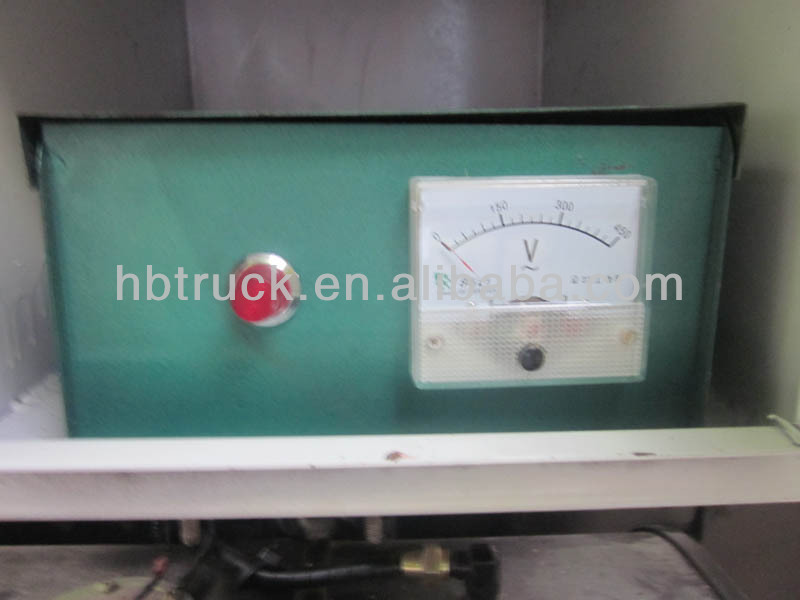

3. Pictures Show

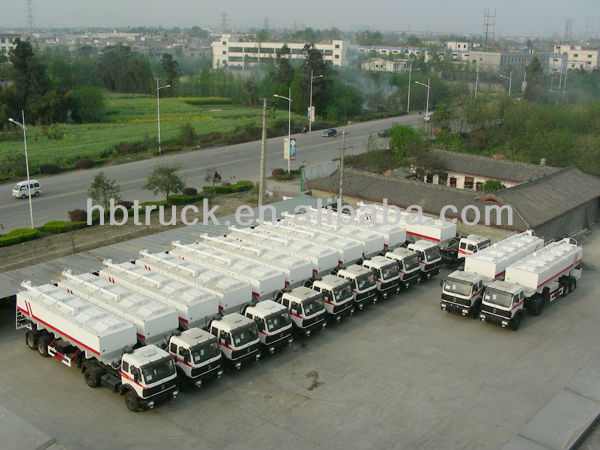

4. Our factory and Certificate











5.Payment terms and delivery



 Delivery date: 20-25 business days



 Payment terms: pay 30% of contract value as prepayment after sign contract and pay the rest after the goods finished.



 Packing: nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements





Remarks

The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.

Should you have any other questions or need any other information, pls feel free to contact me. It would be my great pleasure to be on your service. Pls check my contact information as following





Welcome to visit our factory !



CHENGLI SPECIAL AUTOMOBILE CO.,LTD
