Quick Details

  • Drive Wheel: 4x2
  • Fuel: Diesel
  • Transmission Type: Manual
  • Condition: New
  • Sprinkling Area (m): 12 - 16m
  • Emission Standard: Euro 3
  • Engine Capacity: 4 - 6L
  • Tank Volume: 5001 - 10000L
  • Dimensions (L x W x H) (mm): 8000*2350*2900
  • Brand Name: ChengLiWei
  • Place of Origin: Hubei, China (Mainland)
  • Model Number: CLW5121GSS3
  • Gross Vehicle Weight: 12050
  • Certification: ISO . BV
  • Warranty: 12 months
  • After-sales Service Provided: Overseas service center available
  • horsepower: 140

Packaging & Delivery

Packaging Details with antirust wax on the surface
Delivery Time 7-15 business days after confirmed the order

 DengFeng 1000L water tank truck

 1. water truck function features

 The tanker is made of high-quality carbon steel and equipped with CLW water pump with ample power , which adopt Japanese technology . Its suction length> 6m , watering breadth>14m and lift height>30m .

 Water tank trucks can flush in front , water at rear and sprinkle at the tank's side . It is equipped with a working platform at rear with high pressure water cannon, which can be columnar , heavy rainfall , moderate rain and drizzling rain . The water canon can be rotated and its lift height >30m.

 Natural flow valve and fire fighting joint ..Self-priming pump can pump water from pool to tank , or join the truck with fire hydrant to fill water in tank .

 Water tank truck can also spray insecticide after special anti-corrosive treatment .It certainly can transport water and be used for fire fighting in emergency .

 We can assemble according to customer's request , such as add more pipes or sprinklers .

 2. Techology specification

ItemUnitParameter
Vehicle model DengFeng 10000L water  tank truck
Chassis model DFL1120B10
Overall dimensionsmm8000×2350×2900
Fact cubageL10 m³
GVWkgAppro*12050
Rated loading capacityAppro*6900
Mass in working orderAppro*4955
Body internal dimensionsmm5000×1850×1100
Wheel base

 4500

F/R track base1800/1680
Approach/departure angle.

15/10

Max speedkm/h95
Tire specification

8.25-16,8.25R16

Engine typeEQH140-30/EQH140-33
Number of axles2transmission6-speed with over drive
Operation control systemElectrically hydraulic controlElectric system24V
Equipment

1.Equipped with front(rear,side)sprinkler(sprinkling width>14m )

2.Equipped with rear working platform with water cannon (range>28m)

3.Equipped with CLW pump(suction lift >6m)

4.Equipped with fire valve,water valve,and filter gauzeTime
Engine DengFeng commercial vehicle Environmental Protection,supercharge,diesel engine
Production cycle5-7 days
Warranty12 month,from the date of supply

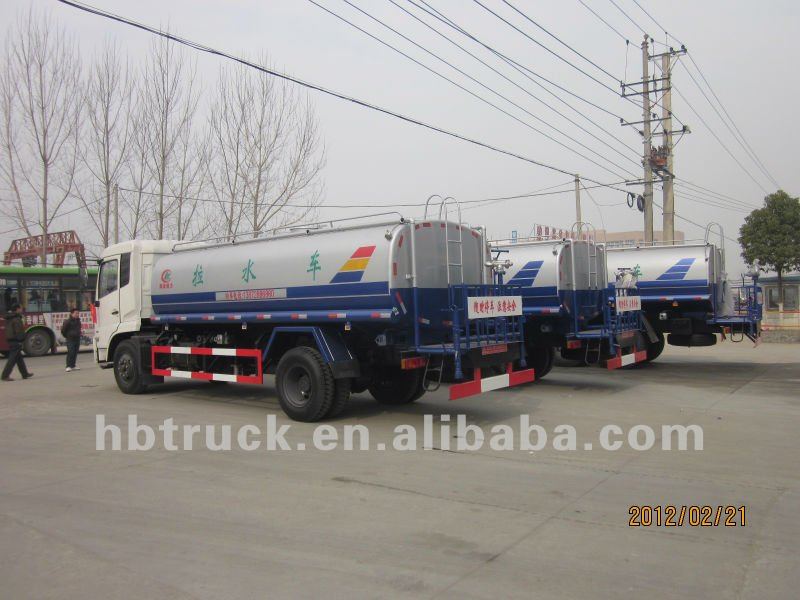

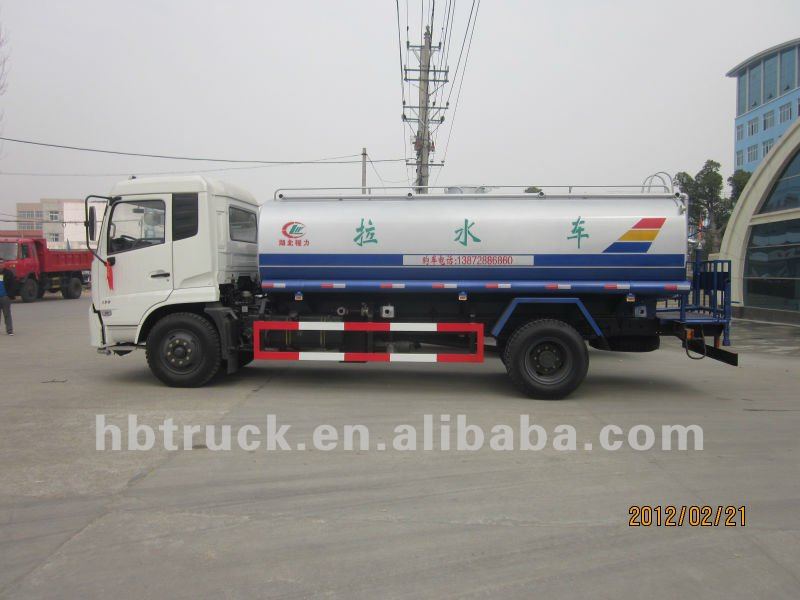

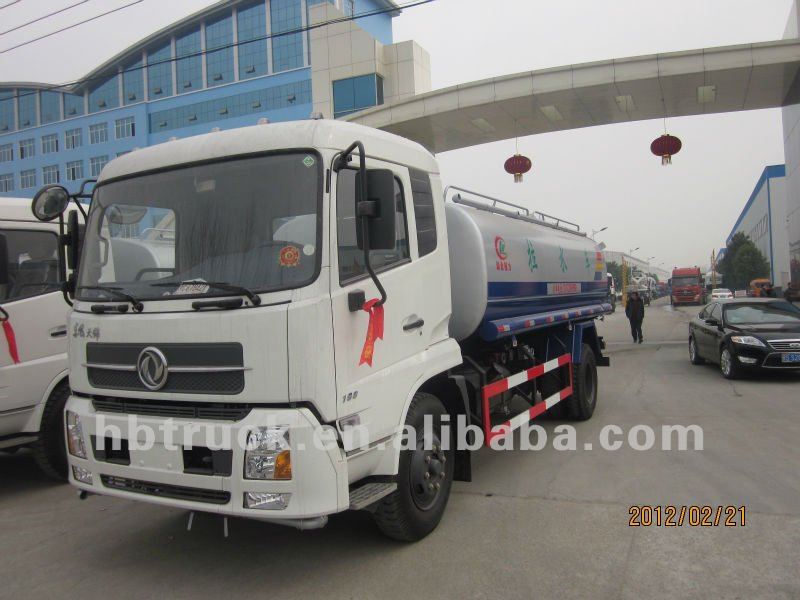

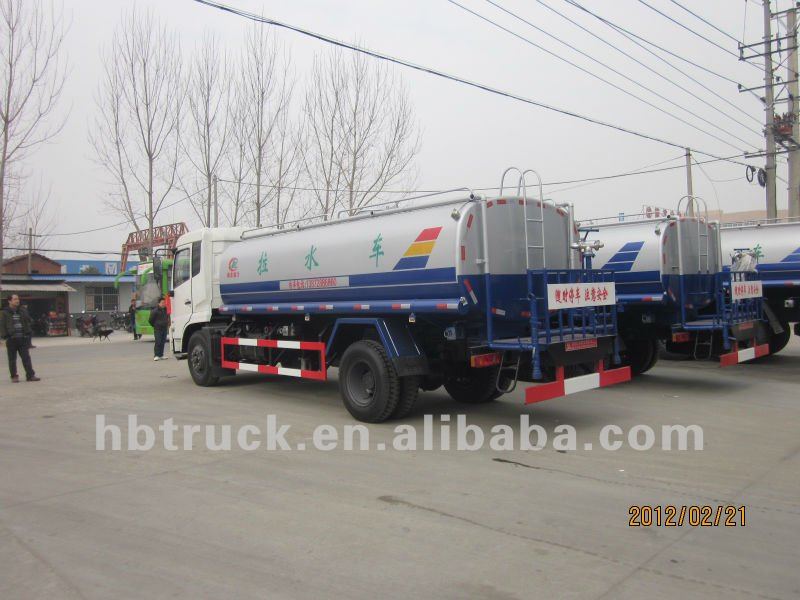

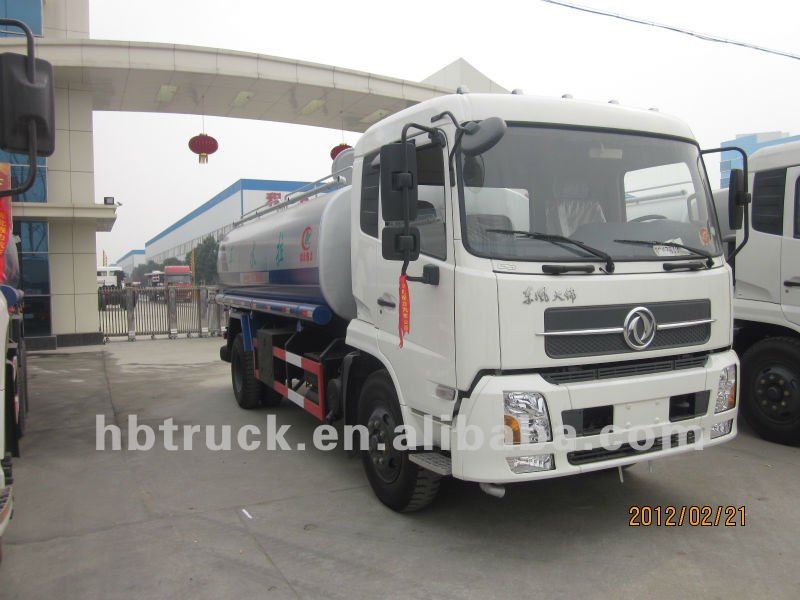

3. Picture Show

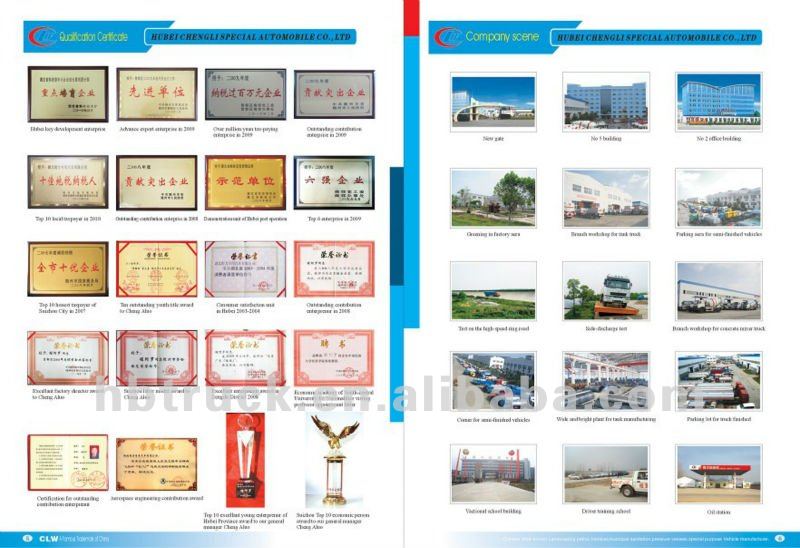

4. Certificate of our factory



5.Payment terms and delivery

Delivery date: 20-25 business days

Payment terms: pay 30% of contract value as prepayment after sign contract and pay the rest after the goods finished.

Packing: nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements



Remarks

The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.

Should you have any other questions or need any other information, pls feel free to contact me. It would be my great pleasure to be on your service. Pls check my contact information as following





Welcome to visit our factory !

 CHENGLI SPECIAL AUTOMOBILE CO.,LTD
