Quick Details

  • Condition: New
  • Place of Origin: Hubei, China (Mainland)
  • Brand Name: Sinotruk
  • Model Number: ZZ5251GJBN3841C
  • Weight: 12890
  • Dimension(L*W*H): 8935*2490*3875
  • Power(W): 247
  • Certification: ISO 9001-2008 , BV Certificate
  • Warranty: 12 months warranty
  • After-sales Service Provided: Overseas service center available
  • color: white
  • Horse Power: 336
  • Engine: EGR
  • Cab: with air condition

Packaging & Delivery

Packaging Details nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements
Delivery Time 15-20 business days

10m3 Sinotruk  concrete mixer truck



Product Description



Special concrete mixer trucks (in–transit mixers) are made to transport and mix concrete up to the construction site. They can be charged with dry materials and water, with the mixing occurring during transport. With this process, the material has already been mixing. The concrete mixing transport truck maintains the material's liquid state through agitation, or turning of the drum, until delivery. The interior of the drum on a concrete mixing truck is fitted with a spiral blade. In one rotational direction, the concrete is pushed deeper into the drum. This is the direction the drum is rotated while the concrete is being transported to the building site. This is known as "charging" the mixer. When the drum rotates in the other direction, the Archimedes' screw-type arrangement "discharges", or forces the concrete out of the drum. From there it may go onto chutes to guide the viscous concrete directly to the job site. If the truck cannot get close enough to the site to use the chutes, the concrete may be discharged into a concrete pump, connected to a flexible hose, or onto a conveyor belt which can be extended some distance (typically ten or more metres). A pump provides the means to move the material to precise locations, multi-floor buildings, and other distance prohibitive locations. The drum is traditionally made of steel but on some newer trucks as a weight reduction measure, fibreglass has been used.



Concrete mixers are equipped with anywhere from two axles and up. Four, five and six axle trucks are the most common with the number being determined by the load and local legislation governing allowable loads on the road. These are necessary to distribute the load evenly and allow operation on weight restricted roads and to reduce wear and tear on normal roads. A two or three axle truck during the winter when road weight limits are reduced has no usable payload in many jurisdictions. Other areas may require expensive permits to operate. Additional axles other than those used for steering ("steers") or drivetrain ("drives") may be installed between the steers and drives or behind the drives. Mixers commonly will have multiple steering axles as well, which generally result in very large turning radii. To facilitate maneuvering the additional axles may be "lift axles" which allows them to be raised off the ground so that they do not scrub (get dragged sideways across the ground) on tight turns, or increase the vehicle's turning radius. Axles installed behind the drives are known as "tag axles" or "booster axles", and are often equipped to turn opposite to the steering axle to reduce scrubbing and automatically lift when the truck is put into a reverse gear.





Specification







Name vehicles

  10m3  concrete mixer  truck

Vehicle models

ZZ5251GJBN3841C

English brand

GOLD PRINCE

Engine Model

WD615.95(C)

WD615.95E

Engine power(kw)

247

WD615.92(C)

WD615.92E

196

WD615.93(C)

WD615.93E

213

Engine capacity

9726 9726 9726

Engine manufacturers

SINOTRUK

Dimensions(mm)

8935×2490×3875

Combustion types

Diesel

8835×2490×3775

8835×2490×3875

The total mass(Kg)

25000

Agitating capacity

8CBM, 9CBM,10CBM

Kerb weight

12890

Rated contained mass

11980

Approach / departure angle (°)

20.5/22

Suspended before / after hanging(mm)

1320/2515

Shaft number

3

Maximum speed(km/h)

74

Oil Consumption



Spring few films

12/12,10/12

Several tire

10

Tire specifications

11.00-20
11.00R20
12.00-20
12.00R20





Pictures Show

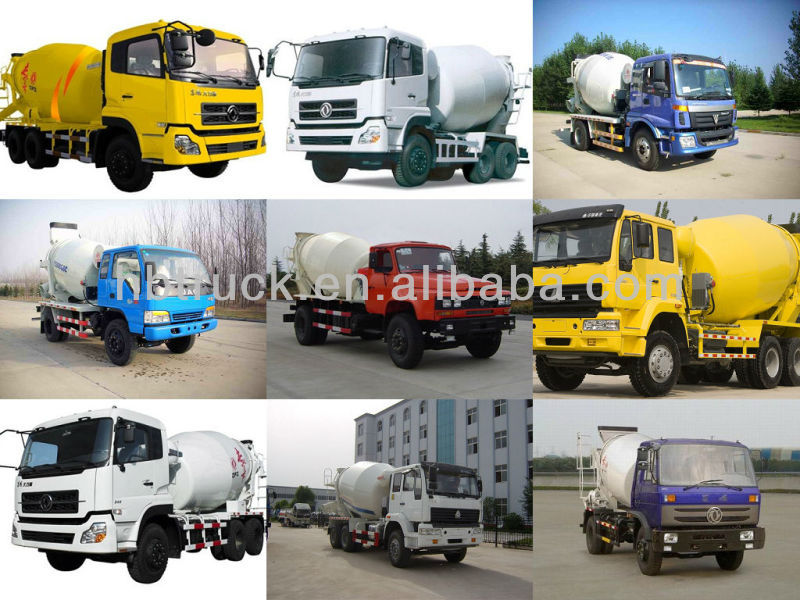

Different Concrete mixer truck





Company Information

ChengLi Special Automobile Co.,Ltd, which is appointed by the Development and Reform Committee of China ,is a famous manufacturer producing all kinds of special trucks for Municipal &environmental construction, virescence, petrol & medicals, container. Semi-trailer. Labels registered include CLW . Our company has independable export potence, and has a mount of clients overseas. Our leading varieties include more than 100 types of trucks such as Water truck, Fecal suction truck, Garbage truck, Refuse compactor, Sewage suction truck, Fuel tank, High-altitude operation truck, Truck with crane, Dump truck, Instructional truck, Van truck, Semi-trailer, Fire engine, Spares, Refrigerator truck, Water wagon, Tractor, High-altitude water truck, Bulk cement truck, Chemical liquid truck, Concrete mixer truck, ect.



Packaging & Shipping

Delivery date: 20-25 business days

Payment terms: pay 30% of contract value as prepayment after sign contract and pay the rest after the goods finished.

Packing: nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements

Remarks

The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.

Should you have any other questions or need any other information, pls feel free to contact me. It would be my great pleasure to be on your service. Pls check my contact information as following
