Quick Details

  • Condition: New
  • Place of Origin: Hubei, China (Mainland)
  • Brand Name: CLW
  • Model Number: CLW9407GYQA
  • Dimension(L*W*H): 13000*2500*3990
  • Capacity: 59.52M3
  • Weight: 15000kg
  • After-sales Service Provided: Overseas third-party support available
  • Material: Q370R
  • Filling medium: Liquid Propane Gas
  • wheel base: 7230+1310+1310
  • tank diameter: 2475mm
  • thickness: 12mm
  • design pressure: 1.61Mpa
  • design temperature: 50 degree C
  • Product name: ASME 3 axle 12 wheels propane 60000Liter lpg truck trailer
  • Head type: ellipsoid
  • Certification: ISO ASME BV

Packaging & Delivery

Packaging Details nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements
Delivery Time 15-20 business days after receive the 30% advance payment

ASME  3 axle 12 wheels propane  60000Liter lpg  truck trailer

Product Description

1.Domestic or imported High quality Safety accessories is optional for LPG storage tank,the tank volume capacity optional from 10 M3 to 120M3

2.According to strict manufacturing engineering to guarantee the lowest contractibility rate and highest dimensional stability.

3.Strict quality testing:A and B class weld joint with 100% x-ray radiographic inspection grade II qualified;C and D class weld joint with 100% magnaflux inspection class I qualified

4.anti-corrosion coating on the LPG tank surface.Using sand-blasting treatment, spraying, blowing and other advanced technology.

5.We can accept custom design to meet the conditions of many other gas transport ,Transport medium include liquid ammonia,liquid sulfur dioxide ,propylene,propane,liquefied petroleum gas (LPG),dimethyl ether,normal butane,isobutane,butene,isobutene,butadiene and ethylene oxide

6.Standard configuration: Safety valve, level gauge, pressure gauge, thermometer, emergency shut-off valve, valve boxes, fire extinguishers, fire star cover, antistatic grounding tape, fencing, tires and fenders.

Specification



Vehicle Model

CLW9404GYQ

Chassis brand

CLW

GVW (kg)

16440

Mass in working order (kg)

40000

Loading capacity (L)

Approx 30000

Tanker material

Q345R

Chassis Description

Trailer

3 alxe trailer

Wheelbase

5000+1310+1310 mm

Axles brand

BPW

Front track

-

Axles NO

3

Rear track

1840/1840/1840mm

Axles loading

12000kg

Total mass

40T

Legs brand

Jost

Truck size

13000×2490×3980mm

Legs loading

28000kg

Curb weight

24.7T

Tyres No

12+1

Loading mass

15.3T

Tyre type

12 tubeless

Steel spring NO

-/7/7/7

Tyre track

2pcs

Tanker Description

Tanker volume

453100

Tanker diameter

2490

Tanker material

Carbon stel Q345R

Tanker design pressure

1.77

Tanker thickness

12.7

Tanker temprature

-19 to 50

















































Pictures Show

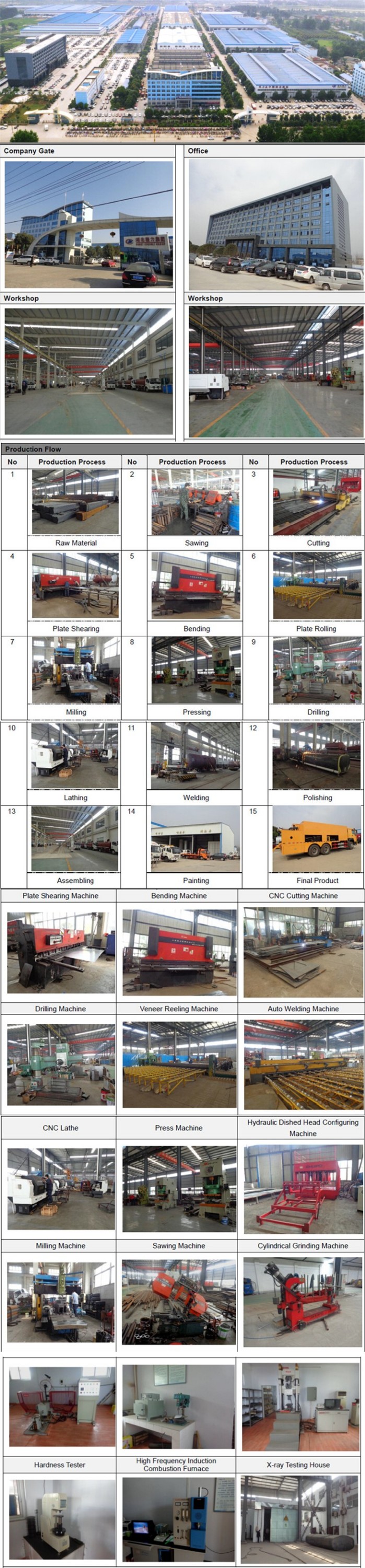

Company Information

ChengLi Special Automobile Co.,Ltd, which is appointed by the Development and Reform Committee of China ,is a famous manufacturer producing

all kinds of special trucks for Municipal &environmental construction, virescence, petrol & medicals, container. Semi-trailer.  Our company has

independable export potence, and has a mount of clients overseas. Our leading varieties include more than 100 types of trucks such as Water truck,

Fecal suction truck, Garbage truck, Refuse compactor, Sewage suction truck, Fuel tank, High-altitude operation truck, Truck with crane, Dump truck,

Instructional truck, Van truck, Semi-trailer, Fire engine, Spares, Refrigerator truck, Water wagon, Tractor, High-altitude water truck, Bulk cement truck,

Chemical liquid truck, Concrete mixer truck, ect.



Certifications



Packaging & Shipping

Delivery date: 20-25 business days

Payment terms: pay 30% of contract value as prepayment after sign contract and pay the rest after the goods finished.

Packing: nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements



CONTACT US

The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.

Should you have any other questions or need any other information, pls feel free to contact me. It would be my great pleasure to be on your service.

Pls check my contact information as following
