Quick Details

  • Condition: New
  • Storage: asphalt and aggregate
  • Drive Wheel: 6x4
  • Horsepower: 351 - 450hp
  • Transmission Type: Manual
  • Fuel Type: Diesel
  • Tank Volume: 5001 - 10000L
  • Engine Capacity: 9.726L
  • Dimensions (L x W x H) (mm): 11860*2490*3550
  • Brand Name: SINOTRUK HOWO
  • Place of Origin: Hubei, China (Mainland)
  • Model Number: clw chip sealer paver
  • Gross Vehicle Weight: 35000
  • color: red /white /white /Yellow
  • chassis brand: DongFeng.FAW.Foton.Sino.JAC.IVECO.Shacman
  • Tank material: Carbon Steel
  • Tire: 11.00R20
  • Driving type: Hand Drive /right hand drive
  • truck Name: china brand new chip sealer paver for sale
  • Transmission: 12-speed
  • Horse power: 336HP
  • Certification: CCC BV ISO WMI
  • Emission standard: Euro2/3/4/5

Packaging & Delivery

Packaging Details nake with anti-wax
Delivery Time 35working days
Product Description
china brand new chip sealer paver for sale

Our  chip sealer paver basic performance



Mass parameter:
cu rb Weight(kg)21200Total Weight ( kg )31000
Rated loading Weight(kg)9670Dimension(mm)12000 × 2500
× 3730
Chassis Parameter :
Chassis ModelZZ1317N4647CTyre model12.00-20 , 12.00R20
Wheelbase (mm)1800+4600+1350Tread mm2022/1830
Engine parameter :
Engine modelWD615.95ManufacturerChina Heavy Duty Truck Group Co., Ltd.
Max.Power(kw)247Max. Torque(N.m)1300/1600
FuelDieselDisplacement(ml)9726
Chip sealer specification :
Tank Capacity(m ³ )8Spray width3800mm
Hydraulic pump modelCBQL-E563Spray Value0.5-3.0 ( Kg )
Hydraulic moto rL2F63W2P2 ( Liyuan )Insulation Thickness50mm
ControllerZM-3DNozzles32
Generator(Converter)YT6800TBurnerG20 ( Riel-lo )
Asphalt pumpQGB450 ( Shanggui )Chipping capacity(m ³ )10m3



Our chip sealer paver features and advantage



1, Patent "Cuniform" shape stainless steel nozzles assemble can achieve high spray finishing.
2, Stainless steel nozzles are higher anti-abrasion performance than copper nozzles.
3, The use of stainless steel laminar flow theory combination of nozzle design, the smooth asphalt spray fan bifurcation is not easy to reduce asphalt consumption.
4, Innovative oil heating systems to heat-conducting oil heating up faster, especially to heat bitumen pump when using emulsion bitumen.
5, Designed by early shunt method of gravel fabric chute can perform more uniform spreading gravel.
6, Adopt fixed aggregate bin + Movable aggregate bin can increase the capacity of loading aggregate.
7, Asphalt mixing gate is reserved for installation of shaft for easy synchronization converted into rubber asphalt spreaders.
8, Through the precise control of electrical and hydraulic pressure to achieve scratch spray
9, The control system user-friendly interface designed to make operation convenient and friendly.

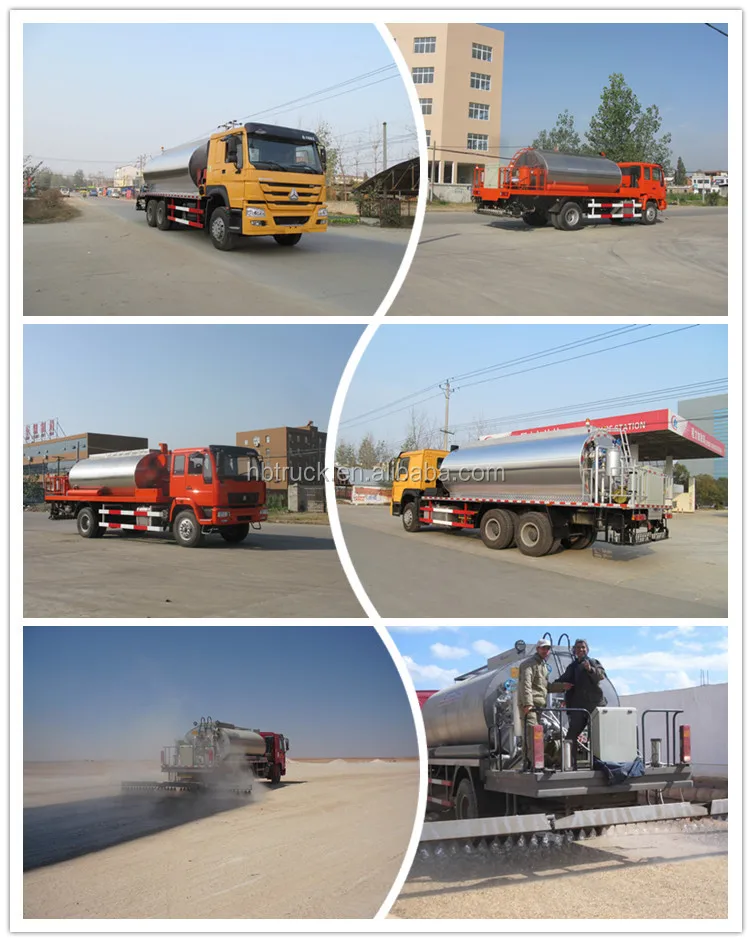

Customer Case

   Working site Testing

   Parts details introduction

  Customer local debugging and workers' teaching

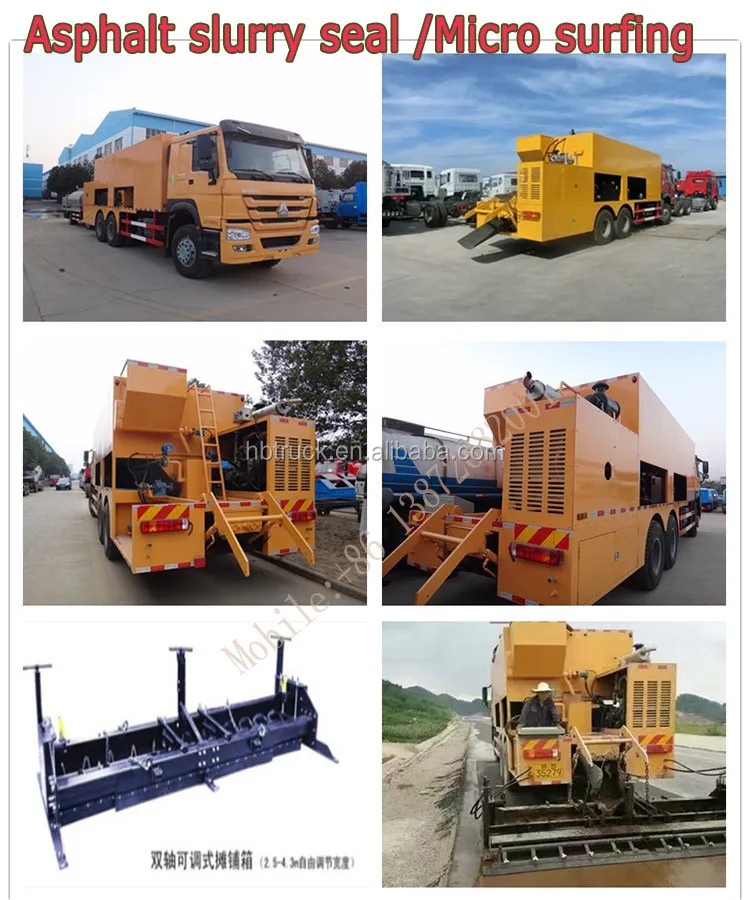

Ratatecd products

    Bitumen storage tank

  Bitumen sprayer

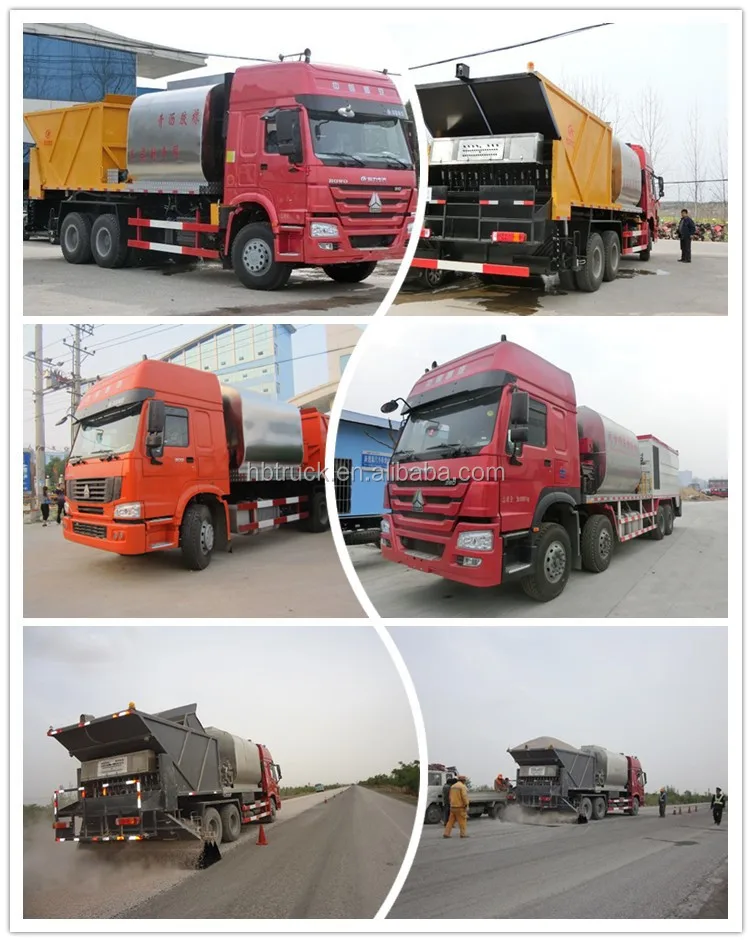

  Bitumen synchronized chip sealer

  Bitumen transporter trailer







Company Information

Chengli Special Automobile Co.,Ltd.

Our company has total assets of 2 billion Yuan(About 0.32 billion USD), covers an area of more than 1,000 acres, has more than 8,000 employees, including 500 technical engineers, more than 2,000 skilled workers, annual production capacity of 100,000 sets special puporse vehicles .

We has leading products as: water truck, garbage truck, suction sewage truck, sweeper,oil tanker truck, chemical trucks, wrecker,aerial platfrom truck , fire truck,crane truck, refrigerated trucks, vans,LPG pressure vessels, road maintenance trucks, flatbed trucks, bulk food truck, dry mortar vehicles, beekeeping truck,mobile stage vehicles,LED advertisement trucks, mobile shop trucks, heavy duty truck mounted crane, cement pump truck, pharmaceuticals transportation trucks, all kinds of trailers,etc., covers series of more than 800 models.,



certificate

Our company passed ISO9001-2008 Quality Management system certificate,ISO 14001 Enviromental Management system certiifcate,OHSAS18001 Occupational health and safty management system certificate,Europen ADR certificate,ASME certificate OCAP,BV and so on certificate



Contact informaiton

If you have any question or be interested in our products,please send quotation or free to contact us.Glad to receive your call or mail.  heavy duty Asphalt synchronization Chip Sealer car for sale
