Quick Details

  • Fuel Type: Diesel
  • Emission Standard: Euro 4
  • Condition: New
  • Transmission Type: Manual
  • Dimensions (L x W x H) (mm): 10412x2500x3400(mm)
  • Place of Origin: Hubei, China (Mainland)
  • Brand Name: FOTON
  • Model Number: CLW5250GNYB5
  • Product name: milk transport truck
  • Chassis brand: foton
  • Color: White yellow red
  • Driving type: LHD
  • Cab: single cab and half
  • Tires number: 8+1
  • tank capacity: 16 CBM
  • Engine power: 210hp
  • Material: stainless steel
  • Other name: Liquid food truck

Packaging & Delivery

Packaging Details 20GP 40HQ CONTAINER BULK SHIP RO-RO SHIP FRAME SHIP
ACCORDING TO REQUESTS
Delivery Time After deposit received in 30 days
Product Description



FOTON AUMAN LHD 6x2 16 cubic meters 4 cabins food grade stainless steel milk liquid transport tanker truck



1.Function introduction



Milk truck, also known as milk truck, milk tanker, liquid food truck, tank made of food grade stainless steel, tank external insulation required to prevent milk deterioration, the tank interior requirements clean, no acute angle, the general needs Add CIP (Wash Device) to each milk tank.



Brand recommendation:DF FOTON JAC HOWO SINOTRUK SHACMAN



Tonnage:3T-30T customized

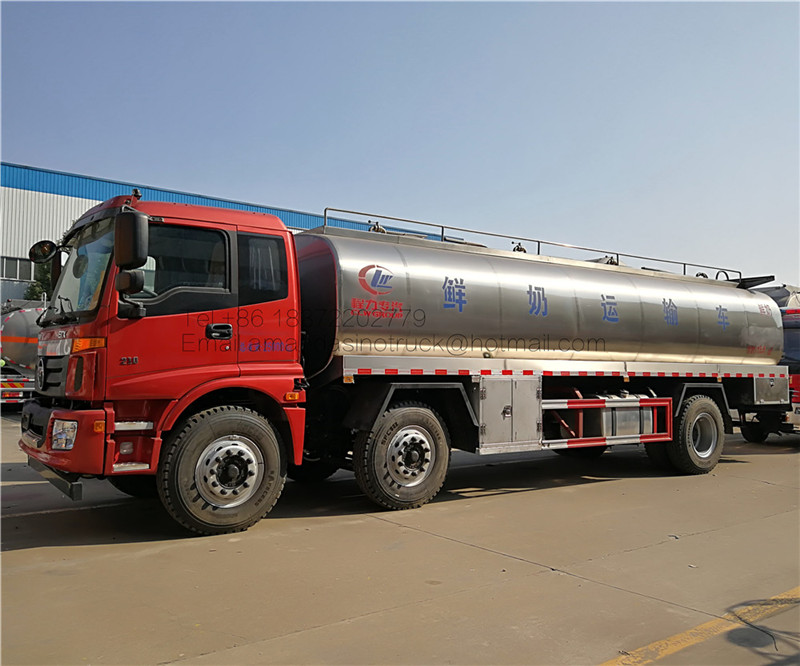

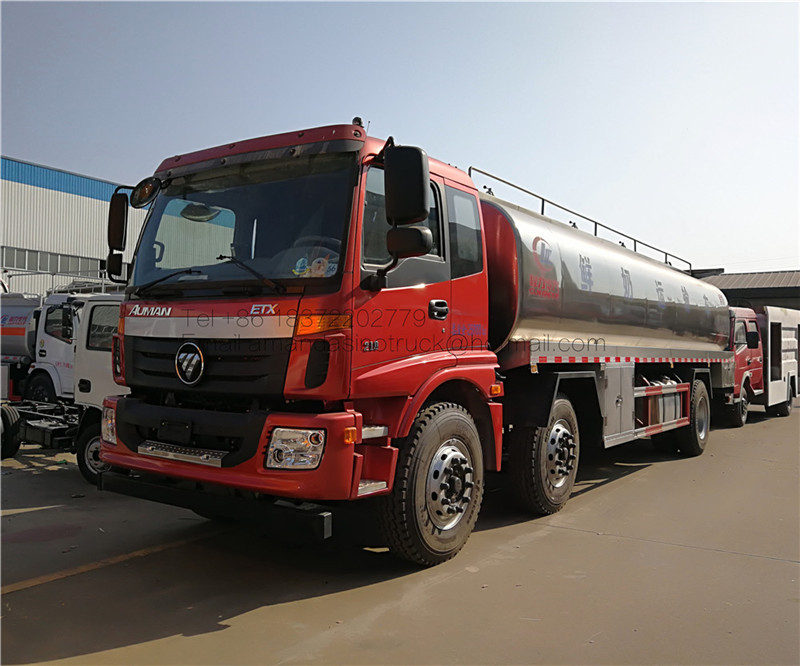

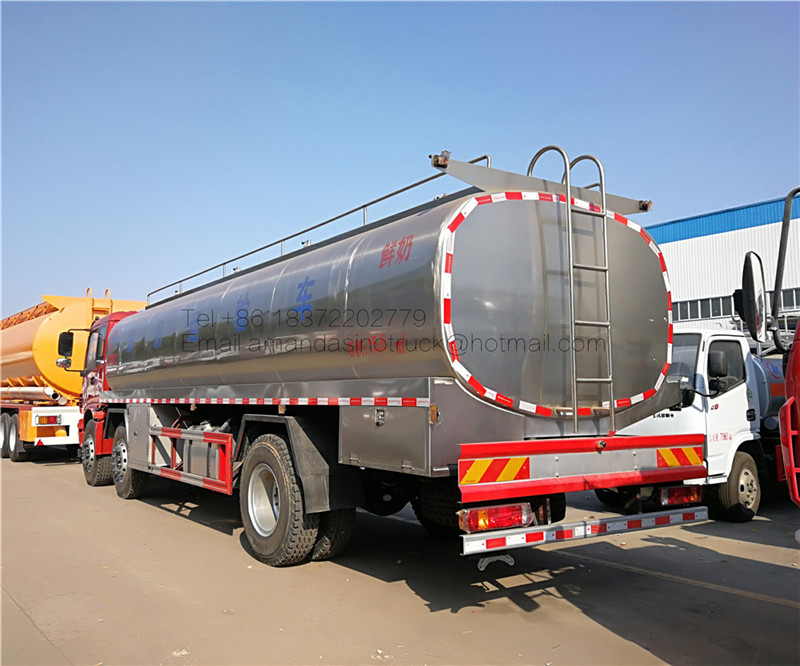

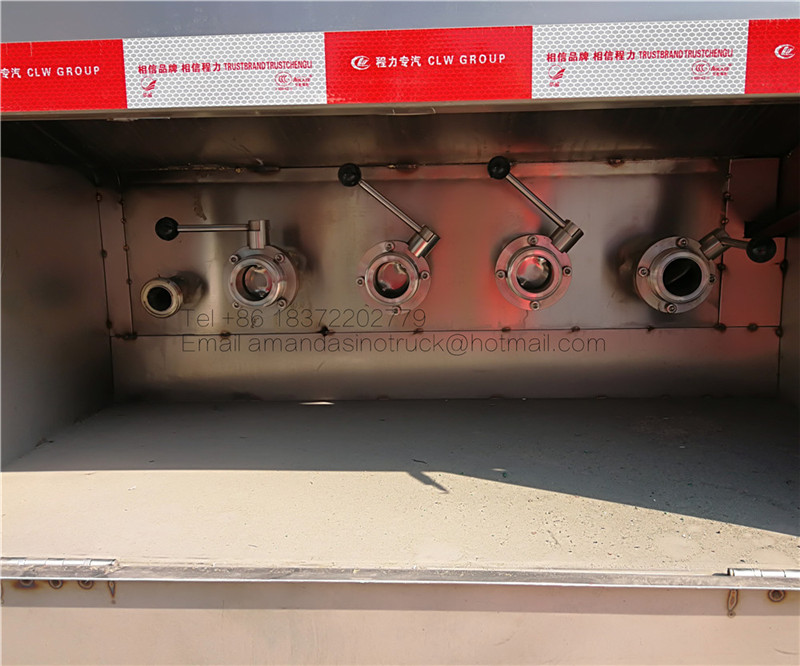

2.Pictures show









3.Technical parameter

A   OVERVIEW



Product namemilk tank truck Product brand CLW
Product conditionnew Colorwhite
Overall size 10412x2500x3400(mm)Tank capacity16cbm
total mass  25000(Kg)Curb quality 9865(Kg)
Cab 2 seats ABSoptional
Approximate angle / departure angle 12/12 (°) Front suspension / rear suspension1130/2070 (mm)
Axle load6750/6750/11500 Wheelbase1860+4800 (mm)
Number of axes2Maximum speed90(km / h)
Number of springs 8/10 + 7Drive type6*2  LHD
Number of tires8Tire specifications11.00-20 18PR,11.00R20 18PR,12R22.5 18PR,295/80R22.5 18PR
Front /Rear track1900/1900,1860(mm)BrakeAir brake

B   CHASSIS



Engine ModelDisplacement (ml) Power (kw)Engine manufacturer
ISD245 50
6700188Dongfeng cummins Power Co., Ltd.
ISD210 50
6700155Dongfeng cummins Power Co., Ltd

C  VEHICLE FUEL PARAMETER



Fuel TypeDiesel Emission StandardEURO 4
D  OTHER



1, optional without sprinkler platform and optional with spray unit;
2, transport medium: water, density: 1000 kg / cubic meter, the effective volume of the tank 7.66 cubic meters, a, with sprinkler platform, the tank size (length × width × height) (mm) 4200 × 2000 × 1340 (mm) is 4500 × 1900 × 1300; c, with spray unit, the tank size (length × width × height) (mm), the size of the tank body (length × width × height) ) Is 3600 × 2100 × 1400;
3, side protection and rear lower protection devices are used Q235A material, are used welding connection, rear protection section size (mm): 150 × 50, rear protection from the ground height: 450 (mm);
4, the text spray map location, vehicle color and local details can be changed, optional oval tank
