Quick Details

  • Fuel Type: Diesel
  • Emission Standard: Euro 3
  • Condition: New
  • Transmission Type: Manual
  • Dimensions (L x W x H) (mm): 6900*2200*2900(mm)
  • Place of Origin: Hubei, China (Mainland)
  • Brand Name: Dongfeng
  • Model Number: CLW5112GJYE5
  • Product name: 4x2 fuel bowser truck
  • Chassis brand: Dongfeng
  • Color: White
  • Driving type: LHD
  • Cab: single cab
  • Tires number: 6
  • load capacity: 5-7tons
  • Engine power: 120hp
  • Material: stainless steel
  • Other name: jet airplane refueler

Packaging & Delivery

Packaging Details 20GP 40HQ CONTAINER BULK SHIP RO-RO SHIP FRAME SHIP
ACCORDING TO REQUESTS
Delivery Time After deposit received in 35-40 working days

4x2 jet fuel bowser truck fuel dispenser for sale in kenya

Product Description



 4x2 jet fuel bowser truck fuel dispenser for sale in kenya



1.Function introduction



The aircraft refueling truck is basically the same as the ordinary mobile refueling vehicle, and its fueling structure and refueling system are basically the same. It is composed of the chassis + tank + refueling system. Its essential difference lies in the design requirements and main features of the aircraft refueling vehicle [medium: aviation Gasoline or aviation kerosene.) Aircraft refueling vehicle manufacturer must have the Civil Aviation Administration of China issued a civil airport dedicated equipment license, the basic design concept is to make an operator simple, safe and efficient for the aircraft refueling. The main features of the truck, the design requirements, the structure of the principle to understand.



I. Aircraft refueling vehicle - the main features
1, refueling pressure stability requirements. To this end in the fuel line on the installation of pressure regulators, regulators and pressure filling table.
2, high cleanliness of the oil. High-performance filter separators are used on the oil circuit. Tanks and pipes must be made of aluminum or stainless steel.
3, absolutely guarantee the safety of refueling. Should be installed to eliminate static devices, interlocking control systems, electrical explosion-proof devices, fire extinguishers and so on.
4, equipped with high precision, high flow of the meter.



II. Structure and principle of aircraft refueling vehicle

1, the system components: from the car chassis, tank assembly, fuel control system, electrical liquid control system, chain protection system and other components.
2, function: transport, storage, pump oil, pressure regulator, purification, measurement function.
3, the scope of application: mainly for underground pipelines without small and medium-sized airports.

.



Brand recommendation:DF FOTON JAC HOWO SINOTRUK SHACMAN



Tonnage:3T-30T customized

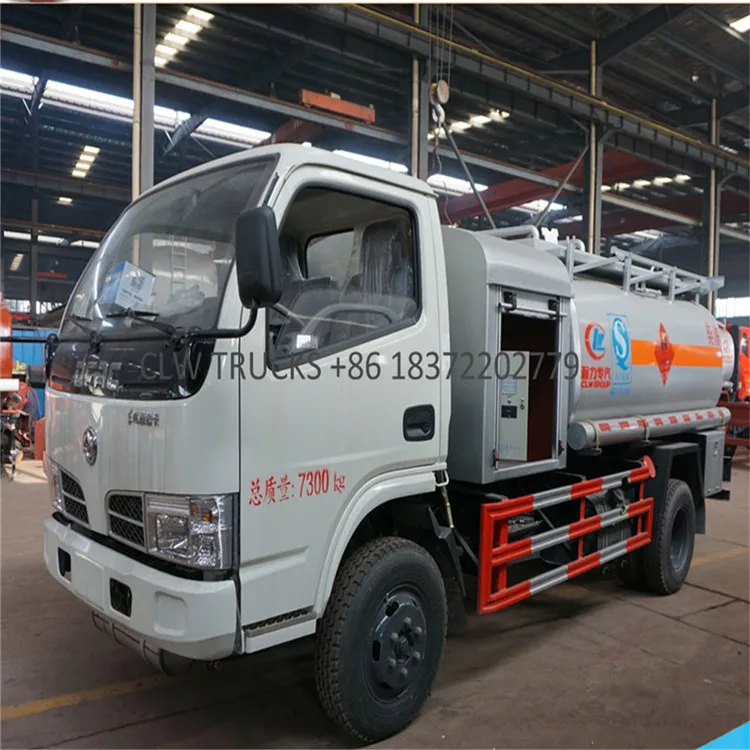

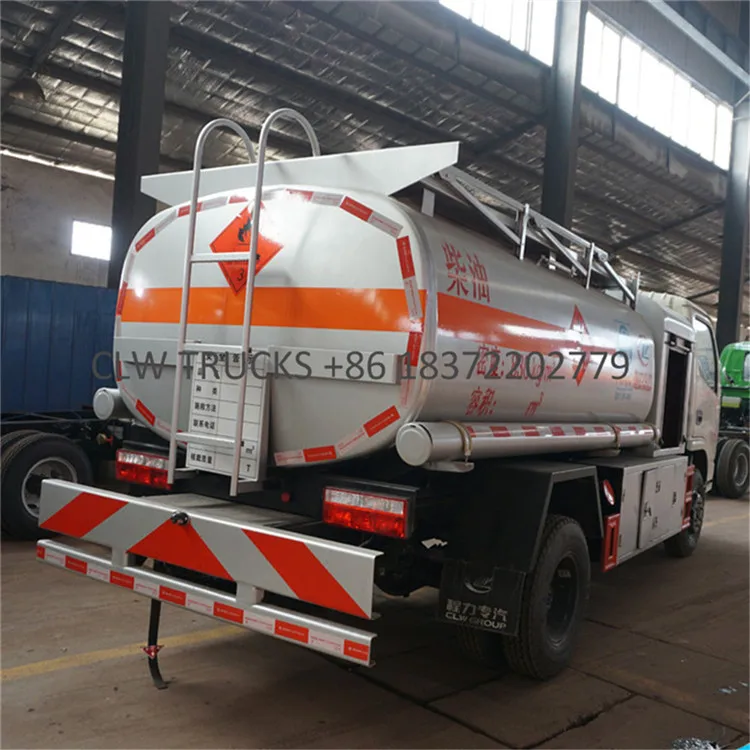

2.Pictures show









3.Technical parameter

A   OVERVIEW



Product name4x2 fuel bowser truck Product brand CLW
Product conditionnew Colorwhite
Overall size 6900*2200*2900mm)Tank capacity5-7 CBM
total mass  11495(Kg)Curb quality 5000(Kg)
Cab 2 seatsABSoptional
Approximate angle / departure angle 20/12 (°) Front suspension / rear suspension1130/2070 (mm)
Axle load4480/8015 Wheelbase3800 (mm)
Number of axes2Maximum speed90(km / h)
Number of springs 8/10 + 7Drive type4*2  LHD
Number of tires6Tire specifications7.00-16 14PR, 7.00R16 14PR
Front /Rear track1740/1640(mm)BrakeAir brake

B   CHASSIS



Engine ModelDisplacement (ml) Power (kw)Engine manufacturer
CY4BK151
3856105Dongfeng Chaoyang Chaoyang Power Co., Ltd.
YC4FA130-50
298295Guangxi Yuchai Machinery Co., Ltd

C  VEHICLE FUEL PARAMETER



Fuel TypeDiesel Emission StandardEURO 3
D  OTHER



1. The vehicle is suitable for transport of dangerous goods. (Mm): 3700 × 2100 × 1450, class number: 3.2, protective material: Q235A carbon steel, connection: left and right side of the tank Side and rear lower protection are welded connection, rear protection section size (mm): 110 × 50, rear protection from the ground height (mm): 390.
