Oil extraction machine diffuser fuel dispenser tank truck

FOB Reference Price:Get Latest Price
US $10,000-20,000 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Fuel Type:
Diesel
Emission Standard:
Euro 3
Condition:
New
Transmission Type:
Manual
Dimensions (L x W x H) (mm):
5995x2050x2500(mm)
Place of Origin:
Hubei, China (Mainland)
Brand Name:
Dongfeng
Model Number:
CLW5070GJYD5
Product name:
refuling truck
Chassis brand:
Dongfeng
Color:
White
Driving type:
LHD RHD optional
Cab:
single cab
Tires number:
6+1
load capacity:
5 CBM
Engine power:
95hp
Material:
carbon ,stainless steel optional
Other name:
petrol refueling truck
SupplyAbility
SupplyAbility:
200 Unit/Units per Month
Packaging & Delivery
Packaging Details
20GP 40HQ CONTAINER BULK SHIP RO-RO SHIP FRAME SHIP
ACCORDING TO REQUESTS
Port
WUHAN SHANGHAI SHENZHEN GUANGZHOU
Lead Time :
After deposit received in 15 working days
Product Description



Oil extraction machine diffuser fuel dispenser tank truck



1.Function introduction



 The fuel truck is a vehicle for transporting oil materials. The fuel truck is equipped with a tanker that can move with the truck and a vehicle that distributes fuel to oil-receiving equipment such as vehicles, agricultural machinery, boilers, construction machinery and hotels.



Brand recommendation:DF FOTON JAC HOWO SINOTRUK SHACMAN



Tonnage:3T-30T customized

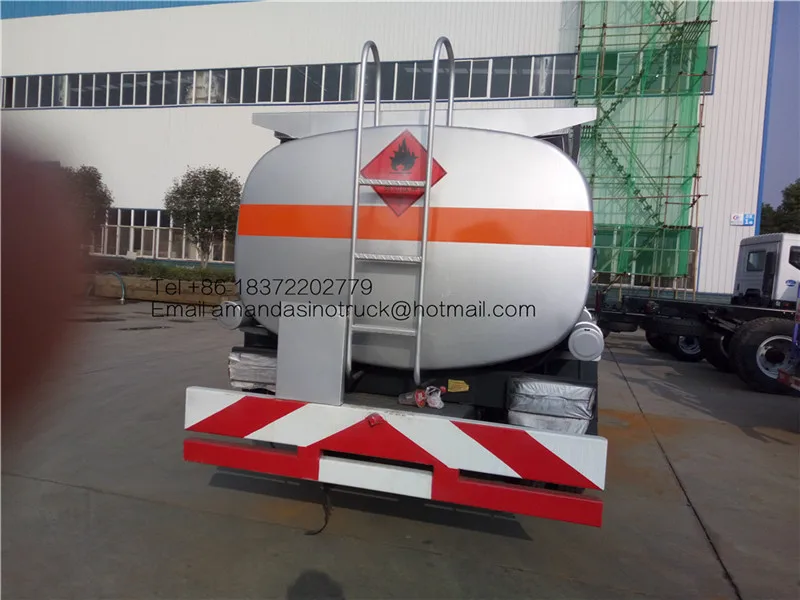

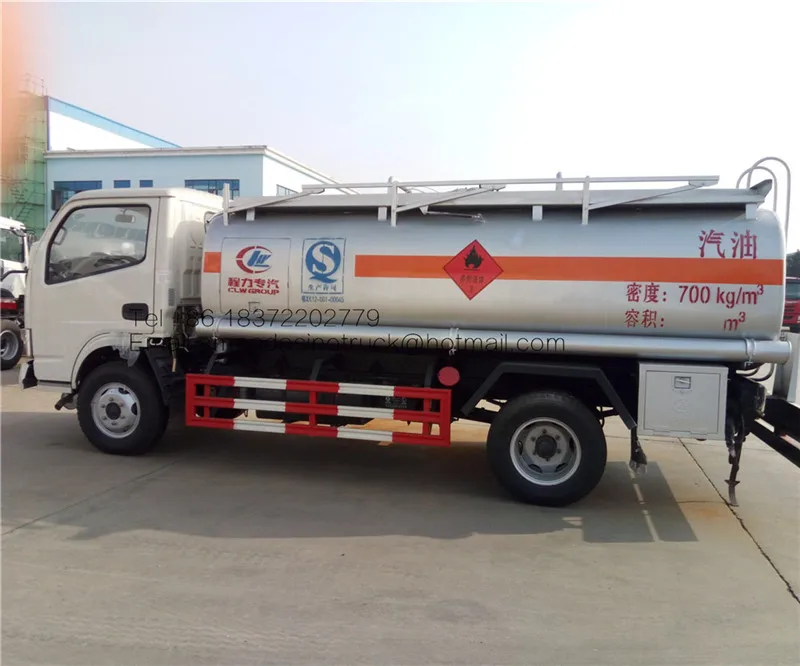

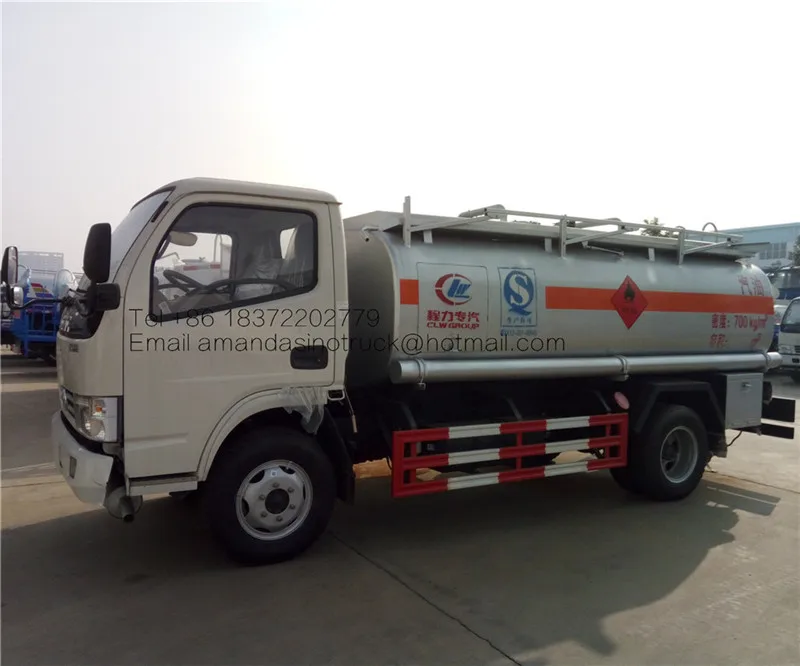

2.Pictures show









3.Technical parameter

A   OVERVIEW



Product namepetrol refueling truck Product brand CLW
Product conditionnew Colorwhite
Overall size 5995x2050x2500(mm)Tank capacity5 CBM
total mass 7360Kg)Curb quality 3620Kg)
Cab 2 seatsABSoptional
Approximate angle / departure angle 16/14 (°) Front suspension / rear suspension1040/1647 (mm)
Axle load4480/8015 Wheelbase3300 (mm)
Number of axes2Maximum speed90(km / h)
Number of springs 8/10 + 7Drive type4*2  LHD
Number of tires6Tire specifications7.00-16 14PR, 7.00R16 14PR
Front /Rear track1740/1640(mm)BrakeAir brake

B   CHASSIS



Engine ModelDisplacement (ml) Power (kw)Engine brand
CY4001
385670CHAOCHAI

C  VEHICLE FUEL PARAMETER



Fuel TypeDiesel Emission StandardEURO 3
D  OTHER



1. The vehicle is suitable for transport of dangerous goods. (Mm): 3700 × 2100 × 1450, class number: 3.2, protective material: Q235A carbon steel, connection: left and right side of the tank Side and rear lower protection are welded connection, rear protection section size (mm): 110 × 50, rear protection from the ground height (mm): 390.



4.Factory show



5.Contact us
