Diesel tanker for aviation fuel bowser fuel dispensing trucks

FOB Reference Price:Get Latest Price
US $60,000-80,000 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Fuel Type:
Diesel
Emission Standard:
Euro 4
Condition:
New
Transmission Type:
Manual
Dimensions (L x W x H) (mm):
5990*1960*2400(mm)
Place of Origin:
Hubei, China (Mainland)
Brand Name:
JAC
Model Number:
CLW5071GJYH5
Product name:
aviation fuel bowser
Chassis brand:
JAC
Color:
White
Driving type:
LHD
Cab:
single cab
Tires number:
6+1
Volume:
4-5CBM
Engine power:
130hp
Medium:
kerosene
Other name:
jet airplane refueler
Supply Ability
Supply Ability:
200 Unit/Units per Month
Packaging & Delivery
Packaging Details
20GP 40HQ CONTAINER BULK SHIP RO-RO SHIP FRAME SHIP
Pls contact for the latest price!
Port
WUHAN SHANGHAI SHENZHEN GUANGZHOU
Lead Time :
After deposit received in 35-40 working days

Diesel tanker for aviation fuel bowser fuel dispensing trucks

Product Description



 Diesel tanker for aviation fuel bowser fuel dispensing trucks



1.Function introduction



The aircraft refueling truck is basically the same as the ordinary mobile refueling vehicle, and its fueling structure and refueling system are basically the same. It is composed of the chassis + tank + refueling system. Its essential difference lies in the design requirements and main features of the aircraft refueling vehicle [medium: aviation Gasoline or aviation kerosene.) Aircraft refueling vehicle manufacturer must have the Civil Aviation Administration of China issued a civil airport dedicated equipment license, the basic design concept is to make an operator simple, safe and efficient for the aircraft refueling. The main features of the truck, the design requirements, the structure of the principle to understand.



I. Aircraft refueling vehicle - the main features
1, refueling pressure stability requirements. To this end in the fuel line on the installation of pressure regulators, regulators and pressure filling table.
2, high cleanliness of the oil. High-performance filter separators are used on the oil circuit. Tanks and pipes must be made of aluminum or stainless steel.
3, absolutely guarantee the safety of refueling. Should be installed to eliminate static devices, interlocking control systems, electrical explosion-proof devices, fire extinguishers and so on.
4, equipped with high precision, high flow of the meter.



II. Structure and principle of aircraft refueling vehicle

1, the system components: from the car chassis, tank assembly, fuel control system, electrical liquid control system, chain protection system and other components.
2, function: transport, storage, pump oil, pressure regulator, purification, measurement function.
3, the scope of application: mainly for underground pipelines without small and medium-sized airports.

.



Brand recommendation:DF FOTON JAC HOWO SINOTRUK SHACMAN



Tonnage:3T-30T customized

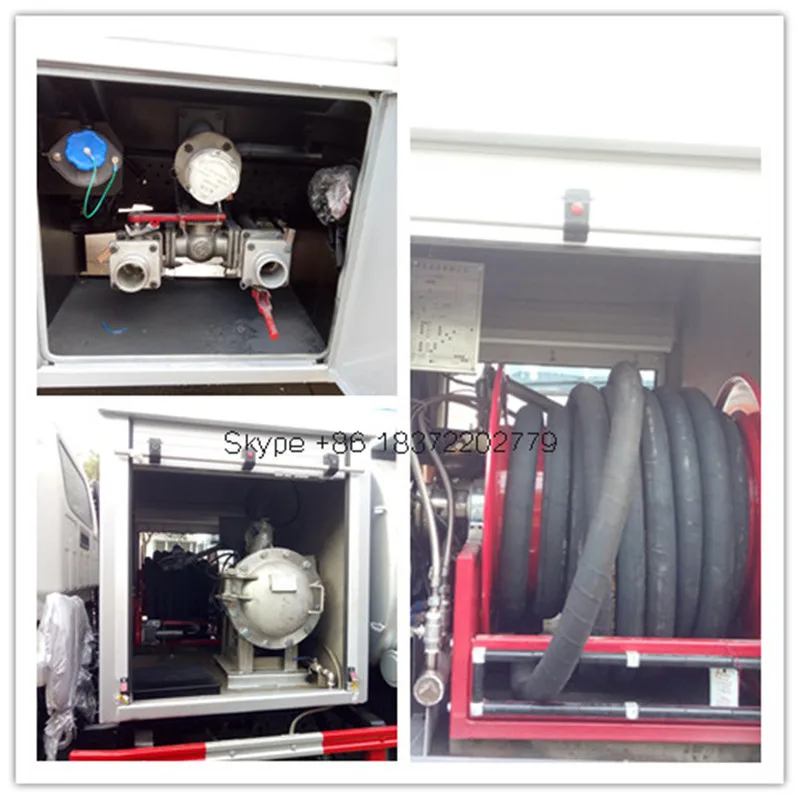

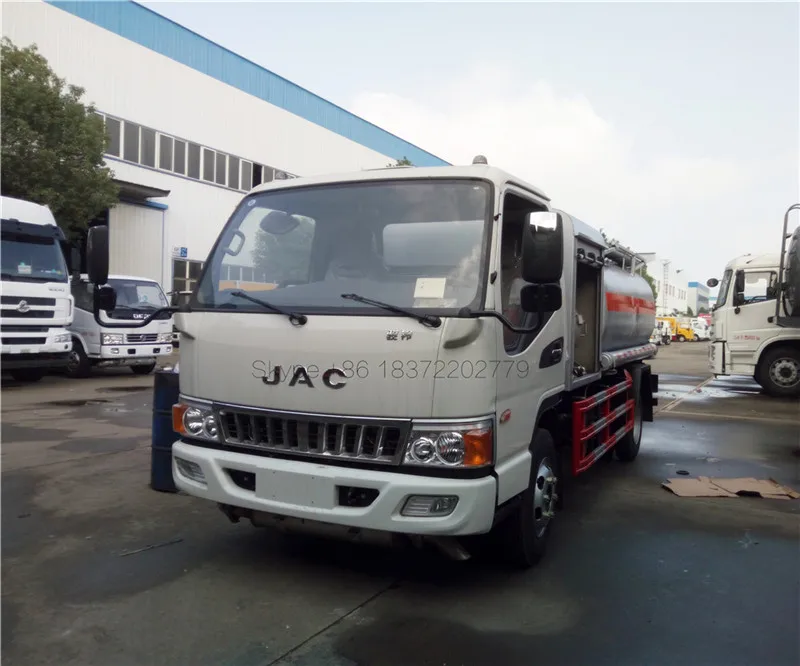

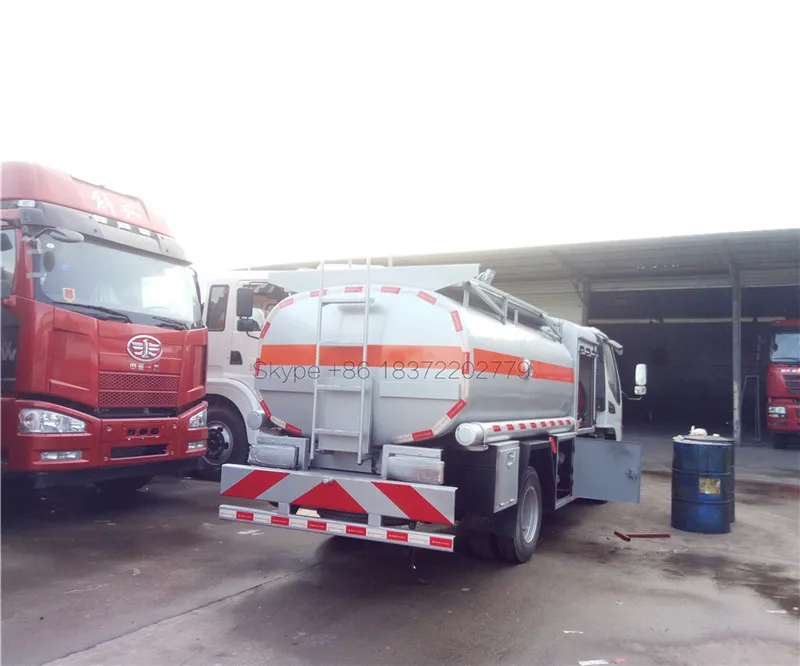

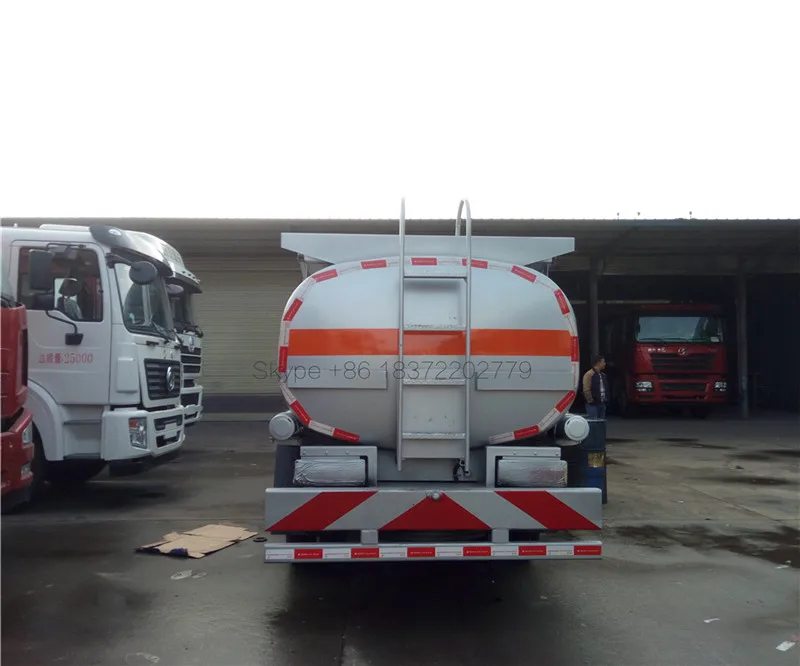

2.Pictures show

 IMG20171019100320.jpgIMG20171019100420.jpgIMG20171019100437.jpgIMG20171019100455.jpgIMG20171019100551.jpg







3.Technical parameter

A   OVERVIEW



Product nameaviation fuel bowserProduct brand CLW
Product conditionnew Colorwhite
Overall size 5990*1960*2400MMTank capacity4-5 CBM
total mass  7360(Kg)Curb quality 4100(Kg)
Cab 2 seatsABSoptional
Approximate angle / departure angle 18/14 (°) Front suspension / rear suspension1085/1597(mm)
Axle load2640/4720 Wheelbase3308 (mm)
Number of axes2Maximum speed90(km / h)
Number of springs 4/9+7Drive type4*2  LHD
Number of tires6Tire specifications7.00-16 14PR, 7.00R16 14PR
Front /Rear track1740/1640(mm)BrakeAir brake

B   CHASSIS



Fuel typeDieselEmission standardEURO 3
Engine ModelDisplacement (ml) Power (kw)Engine manufacturer
WP3Q130E50
297096Weichai Power Yangzhou Diesel Engine Co., Ltd
OTHER SPECIAL REQUESTS CAN BE CUSTOMIZED !
