40000L food grade stainless milk carrying tanker truck

FOB Reference Price:Get Latest Price
US $30,000-32,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Drive Wheel:
4x2
Fuel:
Diesel
Transmission Type:
Manual
Condition:
New
Sprinkling Area (m):
12 - 16m
Emission Standard:
Euro 3
Engine Capacity:
> 8L
Tank Volume:
15001 - 30000L
Dimensions (L x W x H) (mm):
13000*2350*2900
Brand Name:
ChengLiWei
Place of Origin:
Hubei, China (Mainland)
Model Number:
CLW9400NLYY3
Gross Vehicle Weight:
12050
Certification:
ISO . BV
Warranty:
12 months
After-sales Service Provided:
Overseas service center available
horsepower:
266
SupplyAbility
SupplyAbility:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
with antirust wax on the surface
Port
ShangHai
Lead Time :
25days

40000L food grade stainless  milk carrying tanker truck



1..) milk carrying tanker truck features



Sandwich layers for tank : Internal tank  use food class stainless steel 304 / 2B  material, middle layer use 8cbm polyurethane for heat insulation, external use stainless steel  covering.


Equipment  :  with a cleaning device;

                       Stainless steel pipelines





2..) milk carrying tanker truck transportation tank truck details

Weights

Max.Gross Mass

50000

Max.loading (kg)

40000

Tare weight(kg)

10000

Dimensions

Wheelbase(mm)

58100+1310+1310

Overall Dimension(mm)

11500x2500x3500

Tanker design

Tank material and reference

SS304 stainless steel

Thickness of tank

5mm

Manhole

4

Compartments

4

Tank top

Anti Skid surface and hand rail on top of truck

Ladder

At rear or front

Drive Line

Axle

Three Units of FUWA axles.

Axle Bearing

8500/8500/8500 KG

King pin

Jost 3.5’

Suspension

Steel spring

Landing Gear

28 tons,2 speed

Tire

12 units of 12.00R22.5 tires

Pneumatic Braking System

30/30 spring brake chamber (S Cam); reliable local brand 40L air tank ;     reliable local brand standard coppery air-connector

Electrical   System

24V 7-pin socket; reliable local brand standard red rear lights, orange turning lights, red rear reflectors, 3 orange side lights and 3 orange side reflectors each side 6, standard Cable.

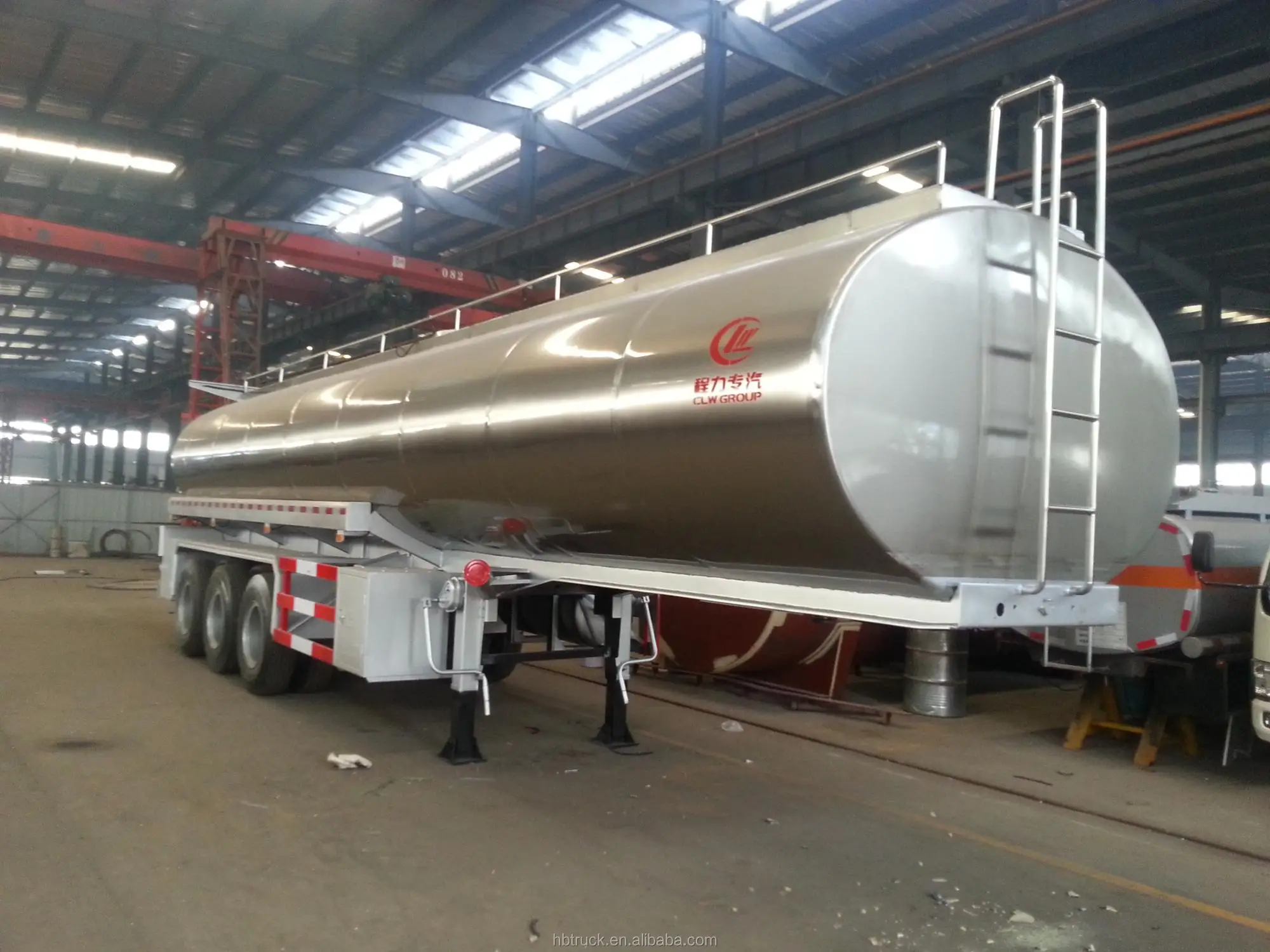

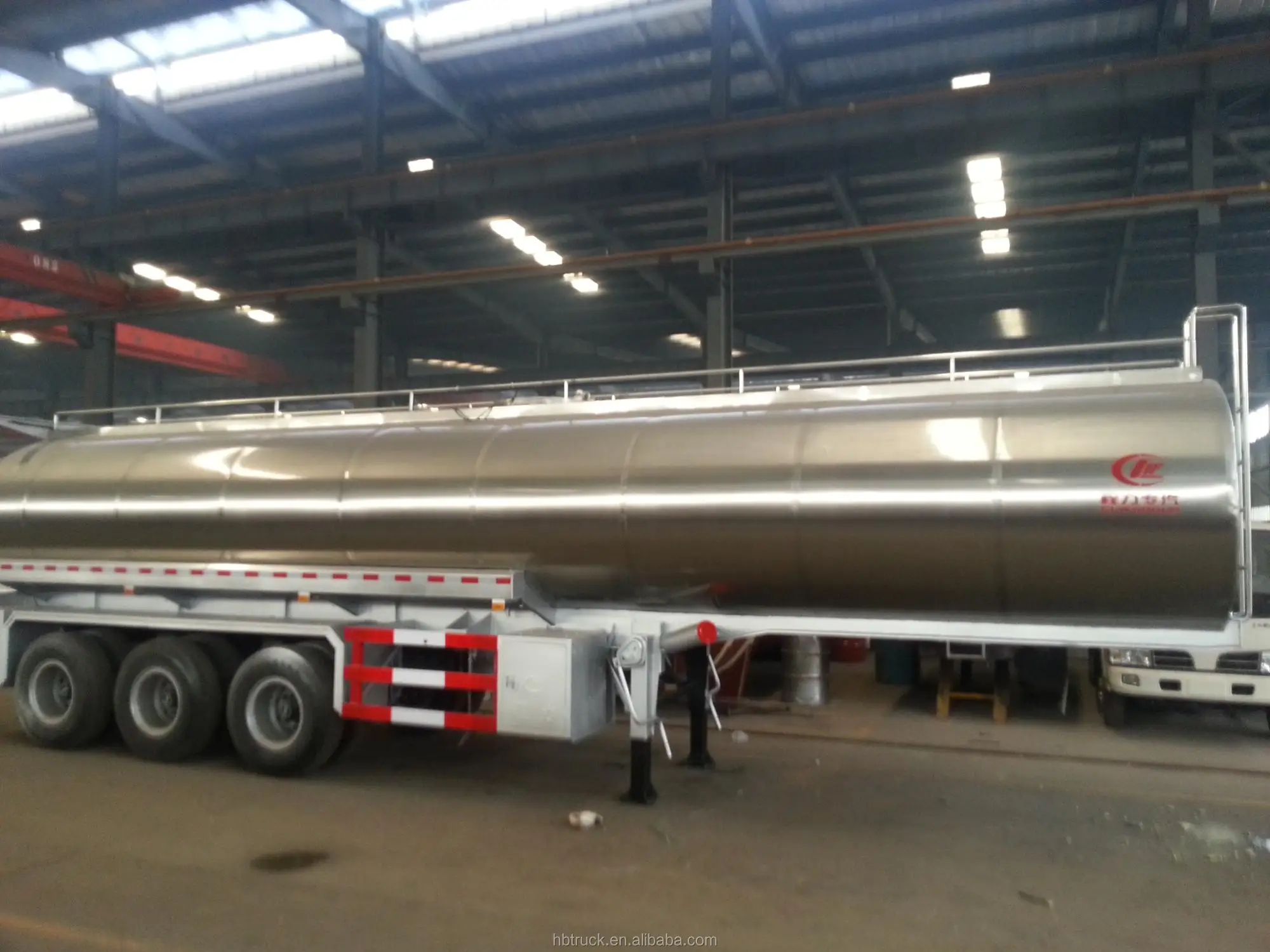

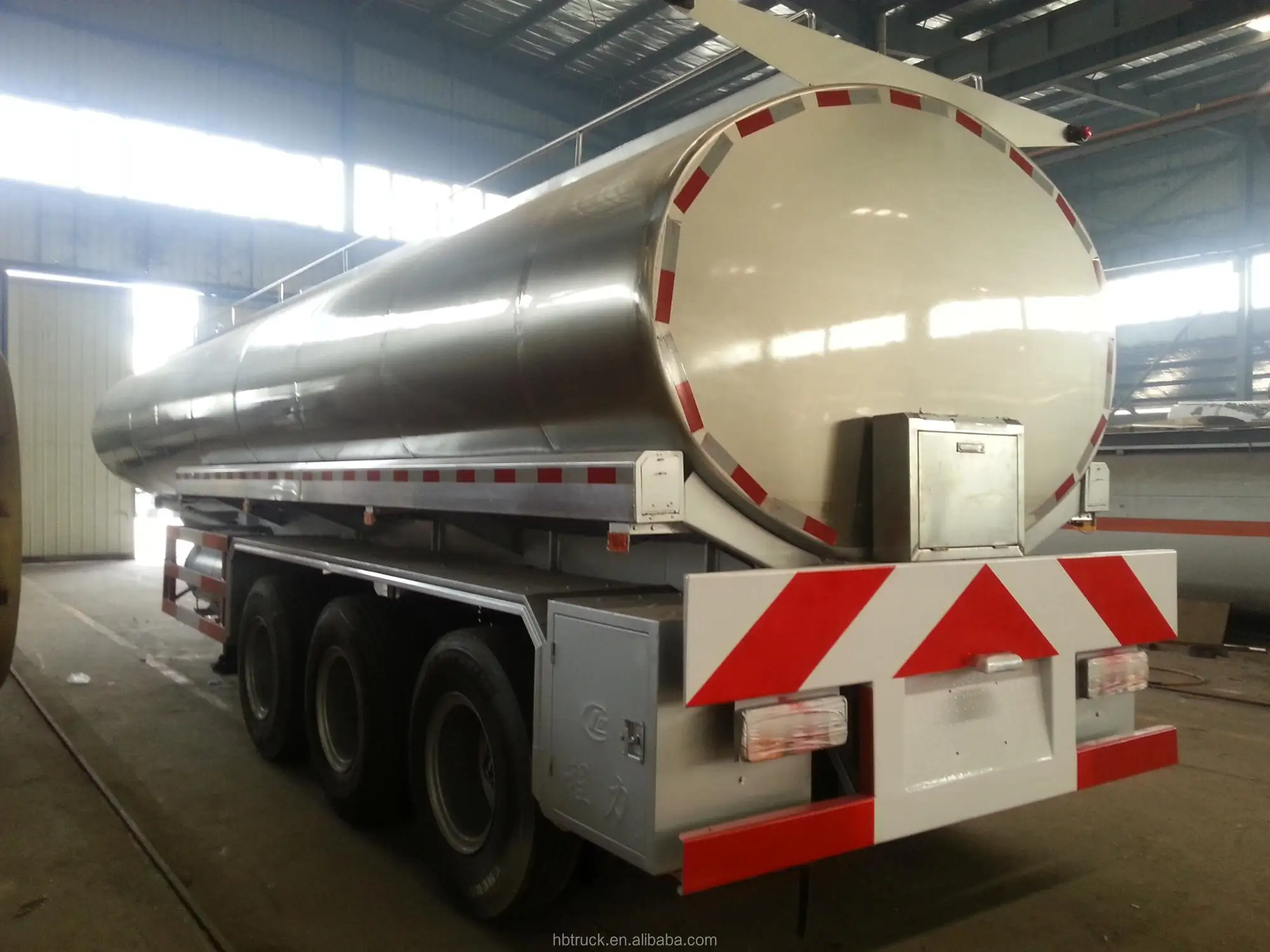

  3..) milk carrying tanker truck  more photos







4..)  Certificate of our factory

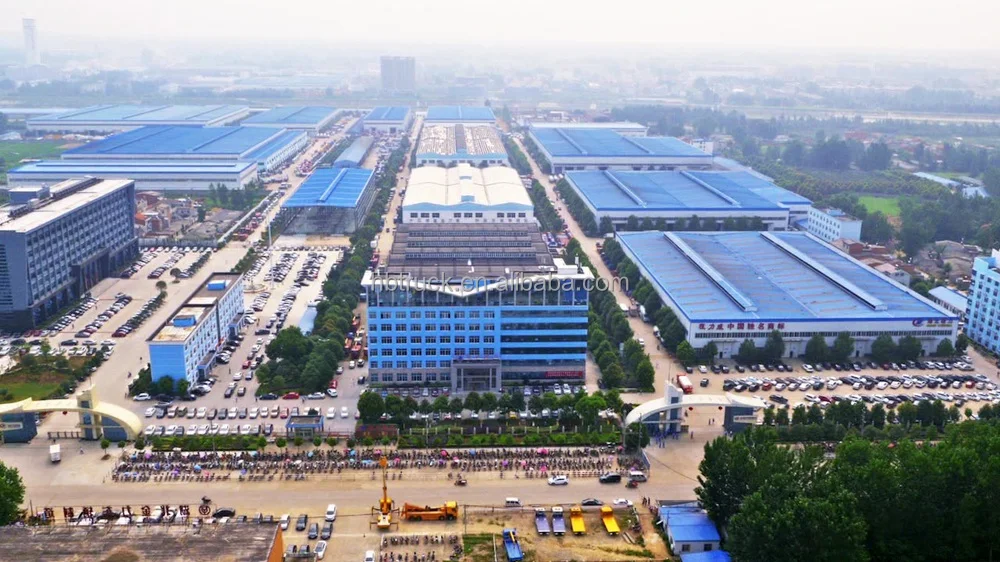

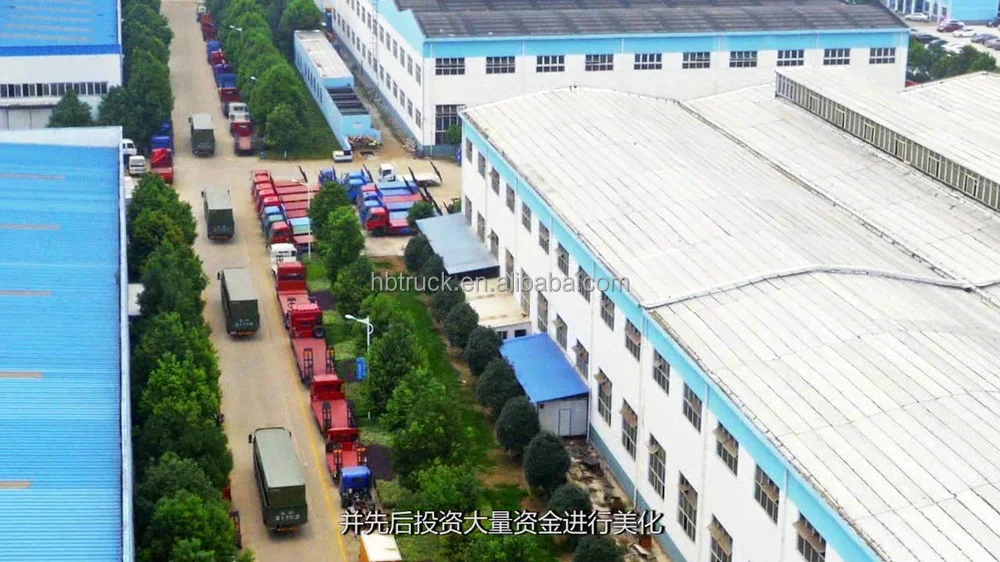

5..) Our factory view













If you need our 40000L food grade stainless  milk carrying tanker truck,please contact me
