Quick Details

  • Fuel Type: Diesel
  • Emission Standard: Euro 3
  • Condition: New
  • Transmission Type: Manual
  • Dimensions (L x W x H) (mm): 5995x2500x3100(mm)
  • Place of Origin: Hubei, China (Mainland)
  • Brand Name: Dongfeng
  • Model Number: CLW5121GSSE9
  • Product name: water sprinkler
  • Chassis brand: Dongfeng
  • Color: White yellow red
  • Driving type: LHD
  • Cab: single cab
  • Tires number: 6+1
  • load capacity: 15000L
  • Engine power: 136kw 155kw
  • Material: stainless steel carbon steel optional
  • Other name: water sprinkler truck water tank truck

Packaging & Delivery

Packaging Details 20GP 40HQ CONTAINER BULK SHIP RO-RO SHIP FRAME SHIP
ACCORDING TO REQUESTS
Delivery Time After deposit received in 15 days

Dongfeng military 4x4 trucks 15000L water sprinkler

Product Description



Dongfeng military 4x4 trucks 15000L water sprinkler



1.Function introduction



Sprinkler, also known as spray truck, multi-function sprinkler, landscaping sprinkler, water tanker, water tanker.
Sprinkler suitable for a variety of road rinse, trees, green belt, lawn green, roads, factories and mines construction construction, high-altitude building rinse. With sprinkler, dust, high, low spray, pesticide spray, fence rinsing and other functions, but also with water, drainage, emergency fire and other functions..



Brand recommendation:DF FOTON JAC HOWO SINOTRUK SHACMAN



Tonnage:3T-30T customized

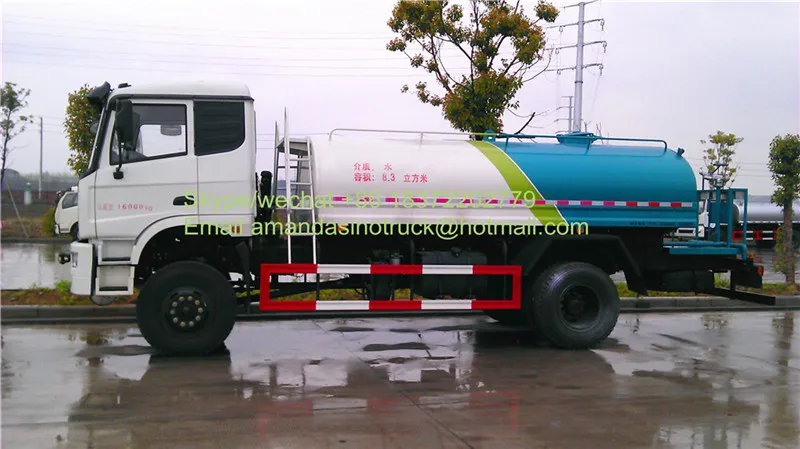

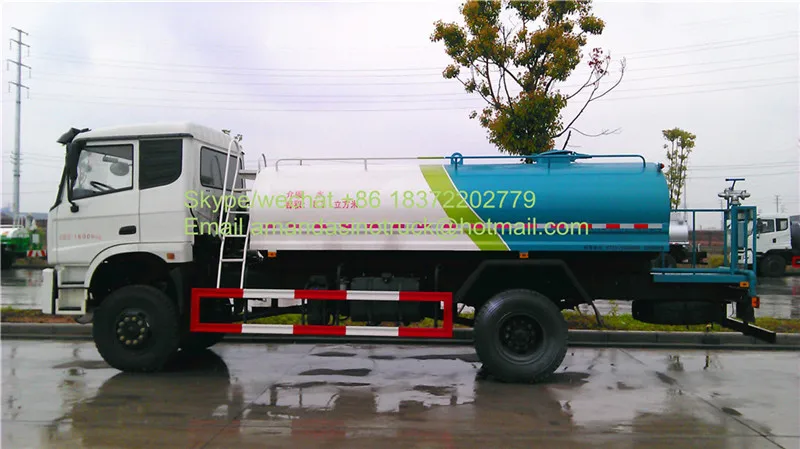

2.Pictures show









3.Technical parameter

A   OVERVIEW



Product namewater sprinklerProduct brand CLW
Product conditionnew Colorwhite
Overall size 5995x2500x3100(mm)Tank capacity15000 CBM
total mass  22500(Kg)Curb quality 7500(Kg)
Cab 2 seatsABSoptional
Approximate angle / departure angle 35/30,38/30(°) Front suspension / rear suspension1250/1245,1385/1110,1450/1045(mm)
Axle load5000/17000kgs Wheelbase3500,4200(mm)
Number of axes2Maximum speed95(km / h)
Number of springs 8/10 + 7Drive type4*4  LHD
Number of tires6Tire specifications7.00-16 14PR, 7.00R16 14PR
Front /Rear track1740/1640(mm)BrakeAir brake

B   CHASSIS



Engine ModelDisplacement (ml) Power (kw)Engine manufacturer
ISD210 50
6700155Dongfeng Cummins Power Co., Ltd.
YC6JA200-50
6870147Guangxi Yuchai Machinery Co., Ltd

C  VEHICLE FUEL PARAMETER



Fuel TypeDiesel Emission StandardEURO 3
D  OTHER



1, optional without sprinkler platform and optional with spray unit;
2, transport medium: water, density: 1000 kg / cubic meter, the effective volume of the tank 7.66 cubic meters, a, with sprinkler platform, the tank size (length × width × height) (mm) 4200 × 2000 × 1340 (mm) is 4500 × 1900 × 1300; c, with spray unit, the tank size (length × width × height) (mm), the size of the tank body (length × width × height) ) Is 3600 × 2100 × 1400;
3, side protection and rear lower protection devices are used Q235A material, are used welding connection, rear protection section size (mm): 150 × 50, rear protection from the ground height: 450 (mm);
4, the text spray map location, vehicle color and local details can be changed, optional oval tank



4.Factory show



5.Contact us
