Quick Details

  • Drive Wheel: 4x2
  • Type: Pumper
  • Transmission Type: Manual
  • Condition: New
  • Horsepower: 150 - 250hp
  • Tank Capacity: 5001 - 7000L
  • Emission Standard: Euro 3
  • Fuel Type: Diesel
  • Max. Work Height: >60m
  • Size: 8120*2480*3350
  • Place of Origin: Hubei, China (Mainland)
  • Brand Name: ChengLiWei
  • Model Number: CLW5150GXFSG60T

Packaging & Delivery

Packaging Details Packing: nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements
Delivery Time 10-15 days

Specifications

DongFeng 6cbm diecast fire trucks
1. ISO9001-2008 Certificate
2. Capacity 6cbm
3.12 months warranty
4 foam type

DongFeng 6cbm diecast fire trucks

1. Beief Introduction

fire truck is a vehicle designed to assist in fighting fires by transporting firefighters to the scene and providing them with access to the fire, along with water or other equipment. In some areas, the terms fire engine and fire truck represent different types of firefighting apparatus.

A modern fire truck is usually a multi-purpose vehicle carrying paid firefighters or volunteers and equipment for a wide range of firefighting and rescue tasks. Therefore, most fire truck carry equipment such as ladders, pike poles, axes and cutting equipment, halligan bars, fire extinguishers, ventilating equipment, floodlights, hose ramps, self-contained breathing apparatus (SCBA), and general tools. Many fire appliances are based on standard truck or lorry models with heavy duty suspensions, brakes, tires, alternator, transmission and cooling systems; audible and visual warnings such as sirens, horns, and flashing lights; and a two-way radio.

The fire truck may have several methods of pumping water onto the fire, such as passing water obtained from a fire hydrant through hoses or using a pumping "cannon" (also known as a monitor or deck gun); some trucks have an onboard water reservoir. Some fire engines may carry ladders to gain access to fires occurring in high-rise buildings and remove casualties, or hooks used to pull walls away to expose hidden fire or break windows. In some regions, a rescue unit is an EMS truck with tools to carry out technical rescues of people from traffic collisions or structural collapses.



2. Specification

Chassis model

DFL1160BX2

Cab

Double Row, 6 Passenger

Engine

Model

b190 33

Horsepower (kw)

140

Outline dimenssion(mm)

8120 x 2480 x 3350

Gross weight(kg)

15000

Wheelbase(mm)

4500

Capacity

Water (L)

6000

Fire pump

Model

Model: CB10/40,Normal pressure pump,rated flow 40 L/S/1.0Mpa

CB20.10/20.40,Middle and low pressure pump,rated flow 20 L/S/ 2.0Mpa,40 L/S/1.0Mpa

Monitor

Model

SP40

Rated flow (L/S)

40

Rated pressure (Mpa)

1.0

Rated range (m)

Water approx 60m

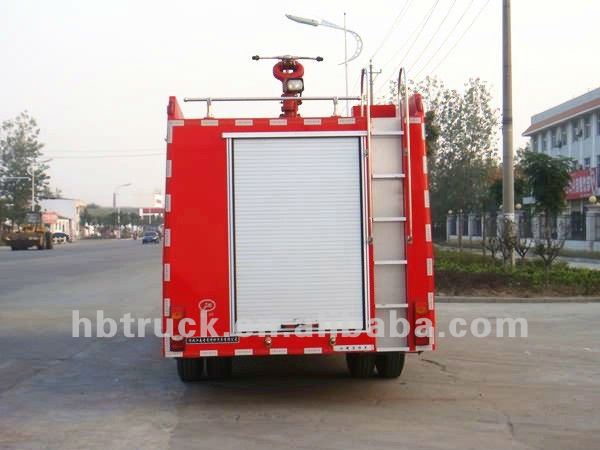

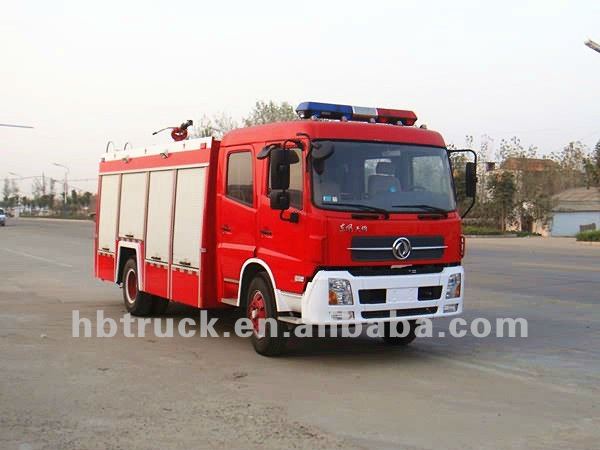

                  3. Picture Show



6. Our factory and Certificate



5. Payment terms and delivery

Delivery date: 20-25 business days

Payment terms: pay 30% of contract value as prepayment after sign contract and pay the rest after the goods finished.

Packing: nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements



6.  Remark

The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.

Should you have any other questions or need any other information, pls feel free to contact me. It would be my great pleasure to be on your service. Pls check my contact information as following
