Sinotruk 10000L remote control fire truck

FOB Reference Price:Get Latest Price
US $25,000-50,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Drive Wheel:
4x2
Type:
Pumper
Transmission Type:
Manual
Condition:
New
Horsepower:
251 - 350hp
Tank Capacity:
7001 - 10000L
Emission Standard:
Euro 3
Fuel Type:
Diesel
Max. Work Height:
>65m
Size:
10025*2500*3600
Place of Origin:
Hubei, China (Mainland)
Brand Name:
ChengLiWei
Model Number:
CLW5280GXFPM120Z
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packing: nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements
Port
Any port of the port
Lead Time :
10-15 days

Specifications

Sinotruk 10000L remote control fire truck
1. ISO9001-2008 Certificate
2. Capacity 10cbm
3.12 months warranty
4 foam type

Sinotruk 10000L remote control fire truck

1. Beief Introduction

fire truck is a vehicle designed to assist in fighting fires by transporting firefighters to the scene and providing them with access to the fire, along with water or other equipment. In some areas, the terms fire engine and fire truck represent different types of firefighting apparatus.

A modern fire truck is usually a multi-purpose vehicle carrying paid firefighters or volunteers and equipment for a wide range of firefighting and rescue tasks. Therefore, most fire truck carry equipment such as ladders, pike poles, axes and cutting equipment, halligan bars, fire extinguishers, ventilating equipment, floodlights, hose ramps, self-contained breathing apparatus (SCBA), and general tools. Many fire appliances are based on standard truck or lorry models with heavy duty suspensions, brakes, tires, alternator, transmission and cooling systems; audible and visual warnings such as sirens, horns, and flashing lights; and a two-way radio.

The fire truck may have several methods of pumping water onto the fire, such as passing water obtained from a fire hydrant through hoses or using a pumping "cannon" (also known as a monitor or deck gun); some trucks have an onboard water reservoir. Some fire engines may carry ladders to gain access to fires occurring in high-rise buildings and remove casualties, or hooks used to pull walls away to expose hidden fire or break windows. In some regions, a rescue unit is an EMS truck with tools to carry out technical rescues of people from traffic collisions or structural collapses.



2. Specification

Model

Sinotruk 10000L remote control fire truck

Chassis model

ZZ1257M4647C

Cab

Double Row, 6 Passenger

Engine

Model

WD651.92

Horsepower (kw)

196

Outline dimenssion(mm)

10025 x 2500 x 3600

Gross weight(kg)

27600

Wheelbase(mm)

4600+1350

Capacity

Water (L)

10000L

Foam (L)

20000L

Fire pump

Model

Model: CB10/60,Normal pressure pump,rated flow 60L/S/1.0Mpa

CB20.10/30.60, Middle and low pressure pump,rated flow 30L/S/2.0Mpa, 60L/S/1.0MPa



Monitor

Model

PL48

Rated flow (L/S)

48

Rated pressure (Mpa)

1.0

Rated range (m)

Water approx 60m,Foam approx 55m

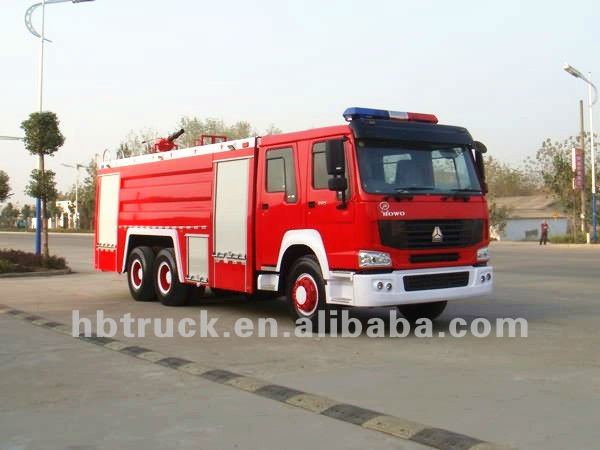

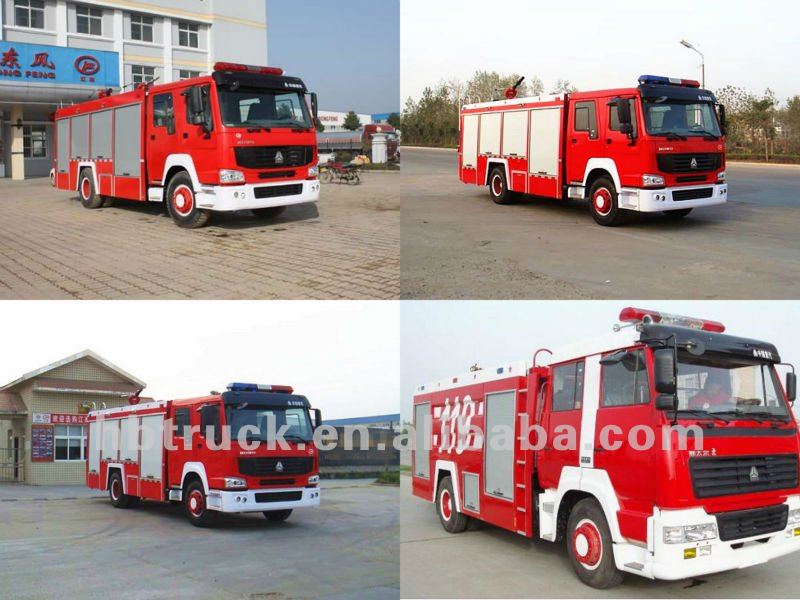

3.. Picture Show






6. Our factory and Certificate

our manufacturer.jpg

Certificate of the world manufacturer .jpg

Certificate for China compulsory product .jpgEnvironment managment certificsation.JPG

.JPG




5. Payment terms and delivery

Delivery date: 20-25 business days

Payment terms: pay 30% of contract value as prepayment after sign contract and pay the rest after the goods finished.

Packing: nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements



6.  Remark

The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.

Should you have any other questions or need any other information, pls feel free to contact me. It would be my great pleasure to be on your service. Pls check my contact information as following
